Description

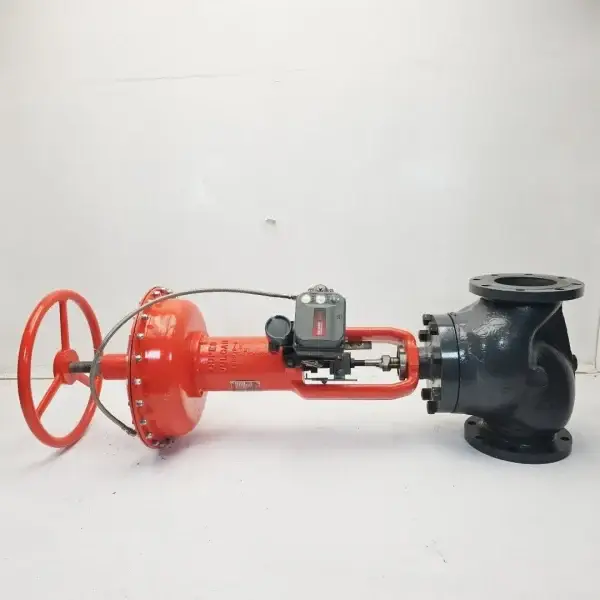

Copes-Vulcan 6″ WCB Control Valve — Class 150, CR12 Seat, 470 GPM (New/Unused Spare)

OEM Copes-Vulcan control valve, 6″ ANSI Class 150 with WCB body and CR12 seat trim.

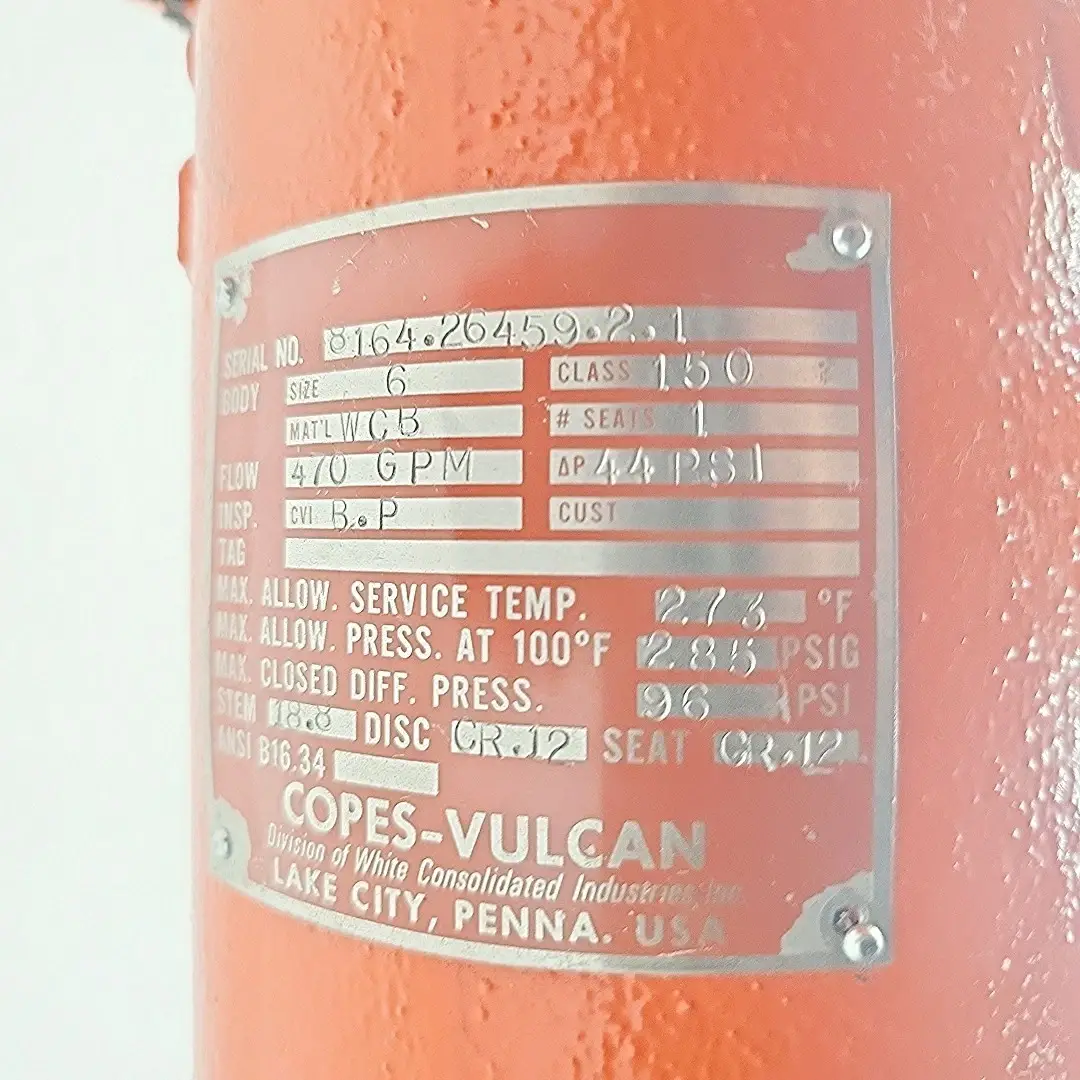

Nameplate data indicates Flow 470 GPM, ΔP 44 psi, Max Service Temp 273°F, and MAWP 285 psig @ 100°F.

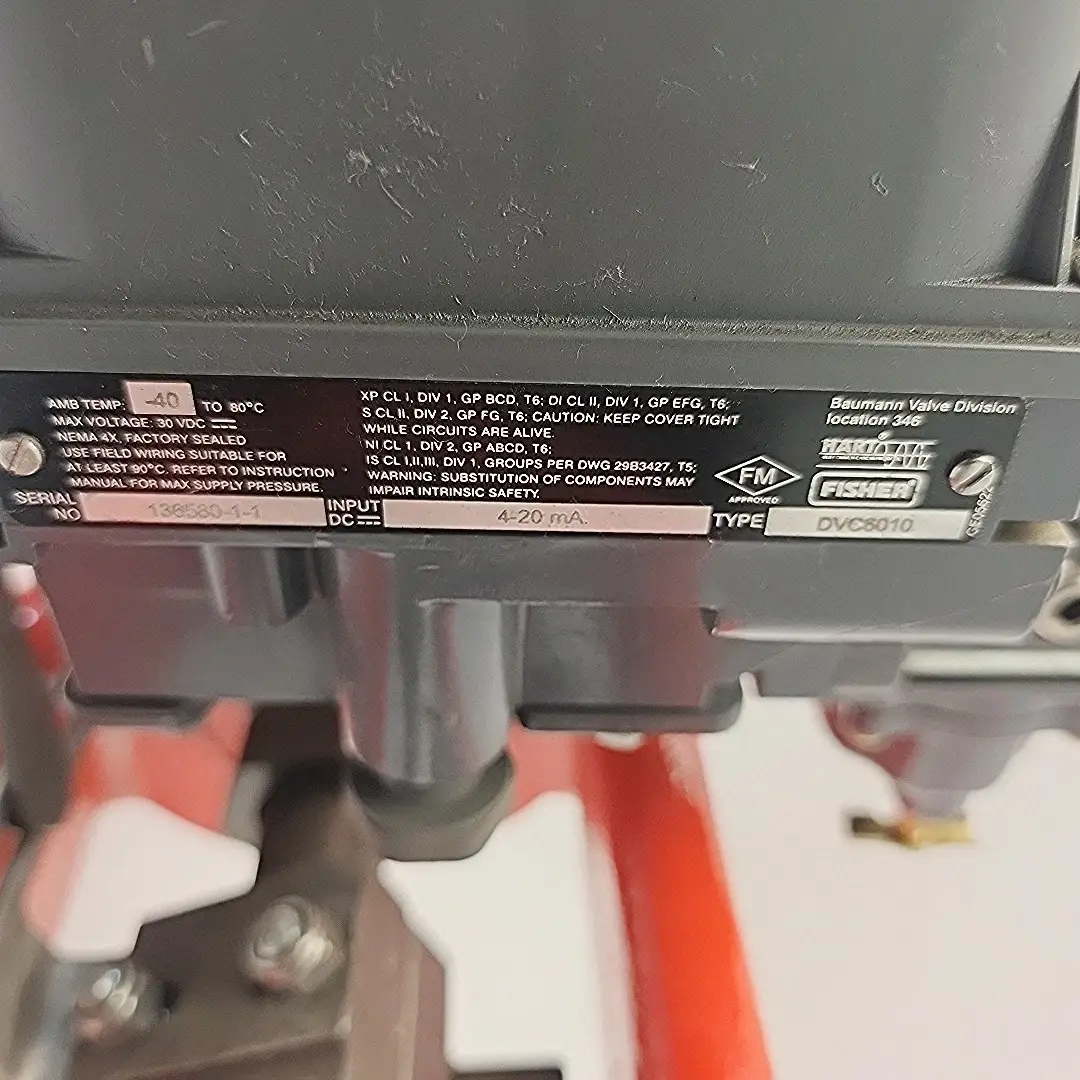

Unit is a new/unused storeroom spare with a Fisher FIELDVUE DVC8010 positioner (see photos).

Key Specifications

• Manufacturer: Copes-Vulcan
• Valve Size / Class: 6″ / ANSI 150
• Body Material: WCB (carbon steel)
• Seat / Trim: CR12
• Rated Flow: 470 GPM
• Differential Pressure: 44 psi
• Max Service Temperature: 273°F
• MAWP: 285 psig @ 100°F
• Ends: Flanged
• Actuation: Pneumatic diaphragm actuator with Fisher FIELDVUE DVC8010 positioner
• Condition: New / Unused Storeroom Spare

What’s Included

• Complete valve assembly as photographed
• Mounted pneumatic actuator + DVC8010 positioner
• Crated for shipment

Documentation (Click to View)

• Copes-Vulcan Control Valves — Product Catalog (OEM PDF)
• GS General Service Control Valves — Brochure (PDF)
• Fisher FIELDVUE DVC6200 (family reference) — Instruction Manual (PDF)
• Fisher 657/667 Pneumatic Actuators — Manual (PDF)

Need a different size or class? Browse more valves.
