Fisher 3″ V150 Vee-Ball Valve w/ 2052 Size 2 Actuator
$3,850.00 USD
Additional Specifications
Product ID: RD259
| Manufacturer | Fisher / Emerson |
| Valve Model | V150 Vee-Ball® (3″, CL150) |
| Actuator | 2052 Pneumatic, Size 2 |
| Positioner | FIELDVUE DVC6200 (HW2), 4–20 mA input |
| Serial No. | F000316647 |
| Specifications |
|
| Included | Valve body with 2052 Size 2 actuator and DVC6200 positioner, as pictured; no additional accessories unless shown |
Condition: used; removed in good working condition. Clean internals; light shelf/handling marks only.
Documentation (Click to View PDFs)
Fisher Vee-Ball V150/V200/V300 Product Bulletin (PDF)
Fisher V150 Vee-Ball Instruction Manual, NPS 1–12 (PDF)
QUOTE / INVOICE
Sales@dwpindustrial.com
Sales@dwpindustrial.com
SHIPPING INQUIRY
Logistics@dwpindustrial.com
Logistics@dwpindustrial.com
VENDOR / ADDITIONAL
Admin@dwpindustrial.com
Admin@dwpindustrial.com
© DWP Industrial Sales — A Better Way to Buy
1 in stock
Description

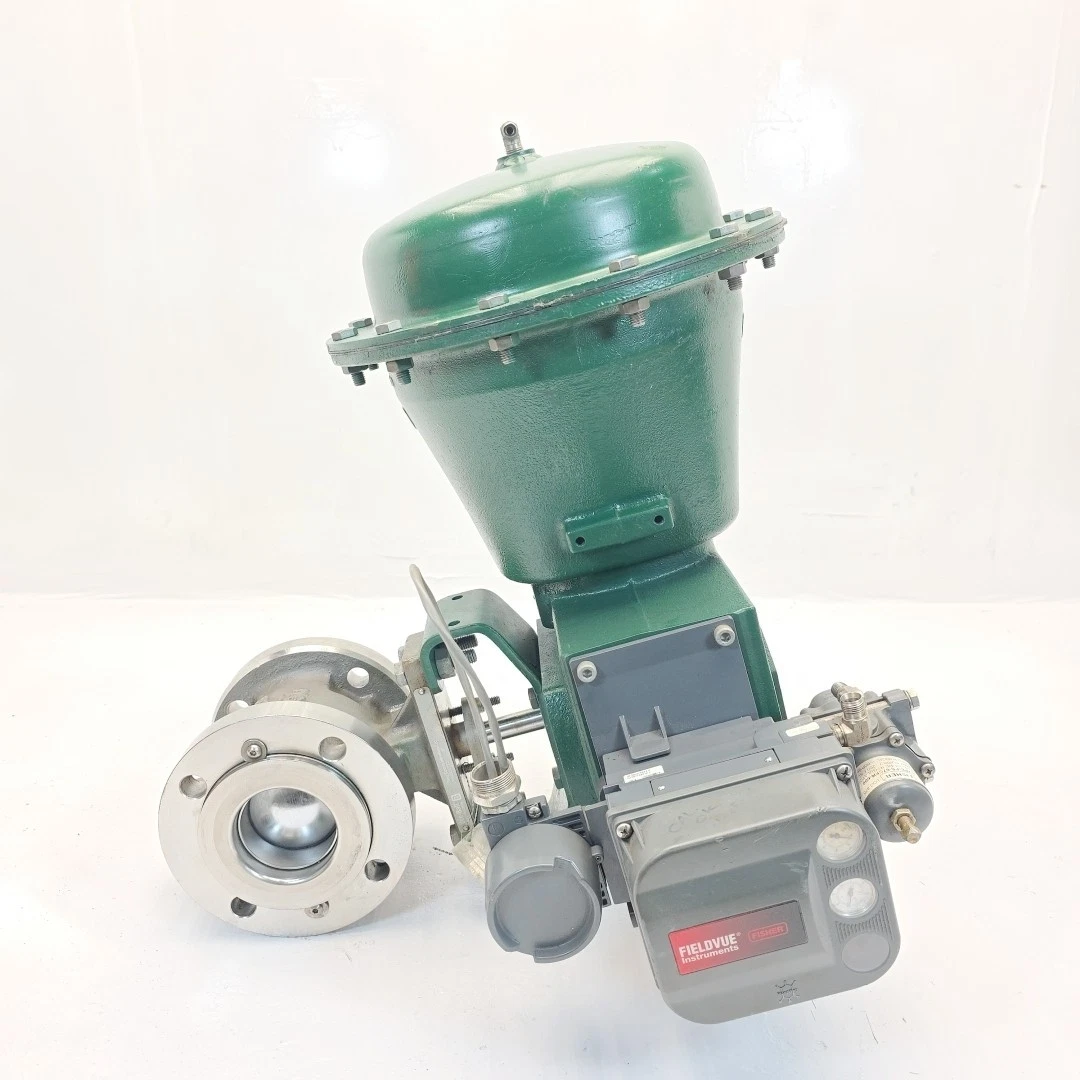

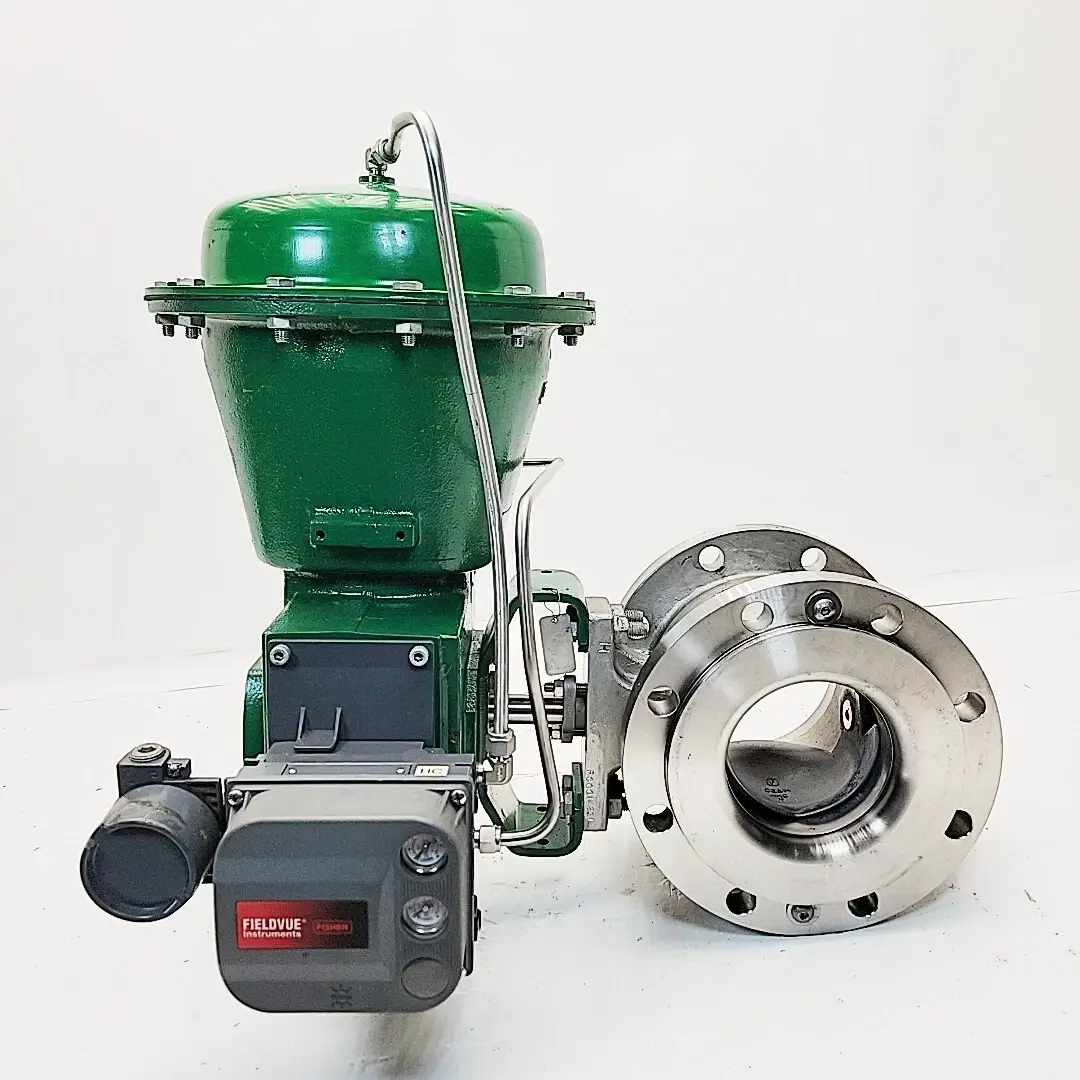

Fisher 3″ V150 Vee-Ball — CL150, SST, with 2052 Size 2 Pneumatic Actuator
The Fisher 3″ V150 Vee-Ball valve provides precise throttling with segmented ball control.
This assembly is fitted with a 2052 Size 2 pneumatic actuator and a FIELDVUE DVC6200 digital valve controller (4–20 mA).
Offered as an unused storeroom spare.
Key Specifications
- Manufacturer: Fisher / Emerson

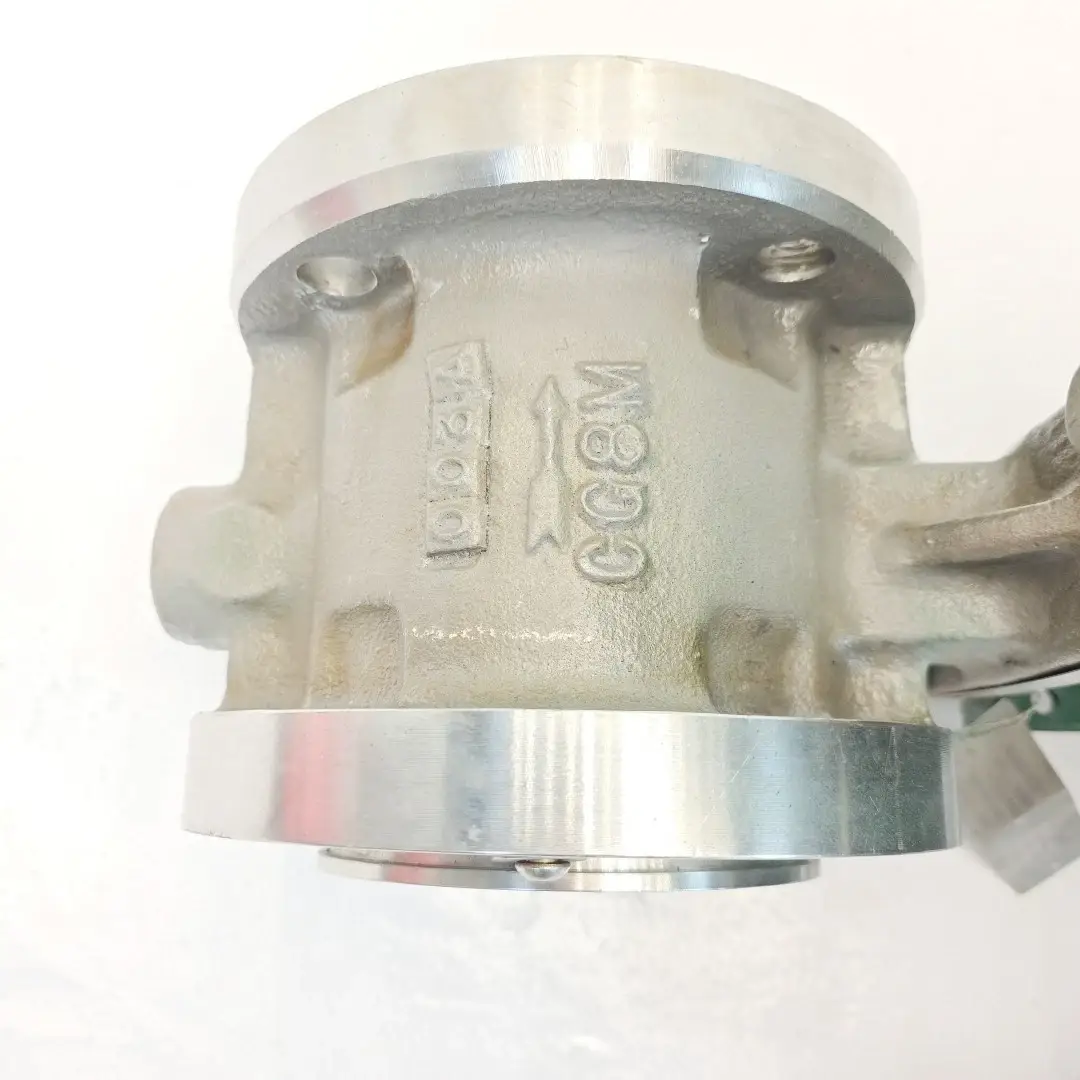

- Valve: V150 Vee-Ball, 3″, ANSI Class 150, RF flanged

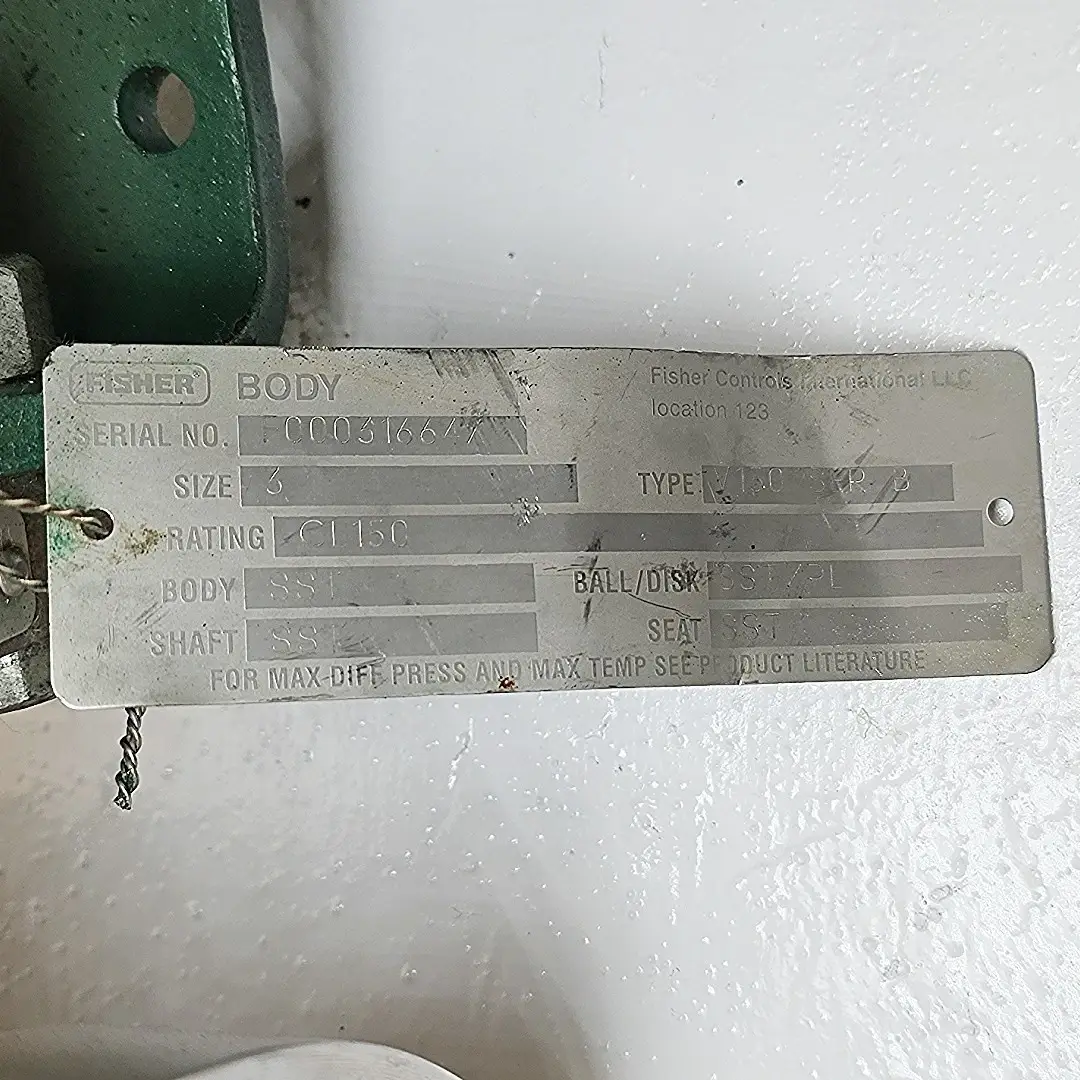

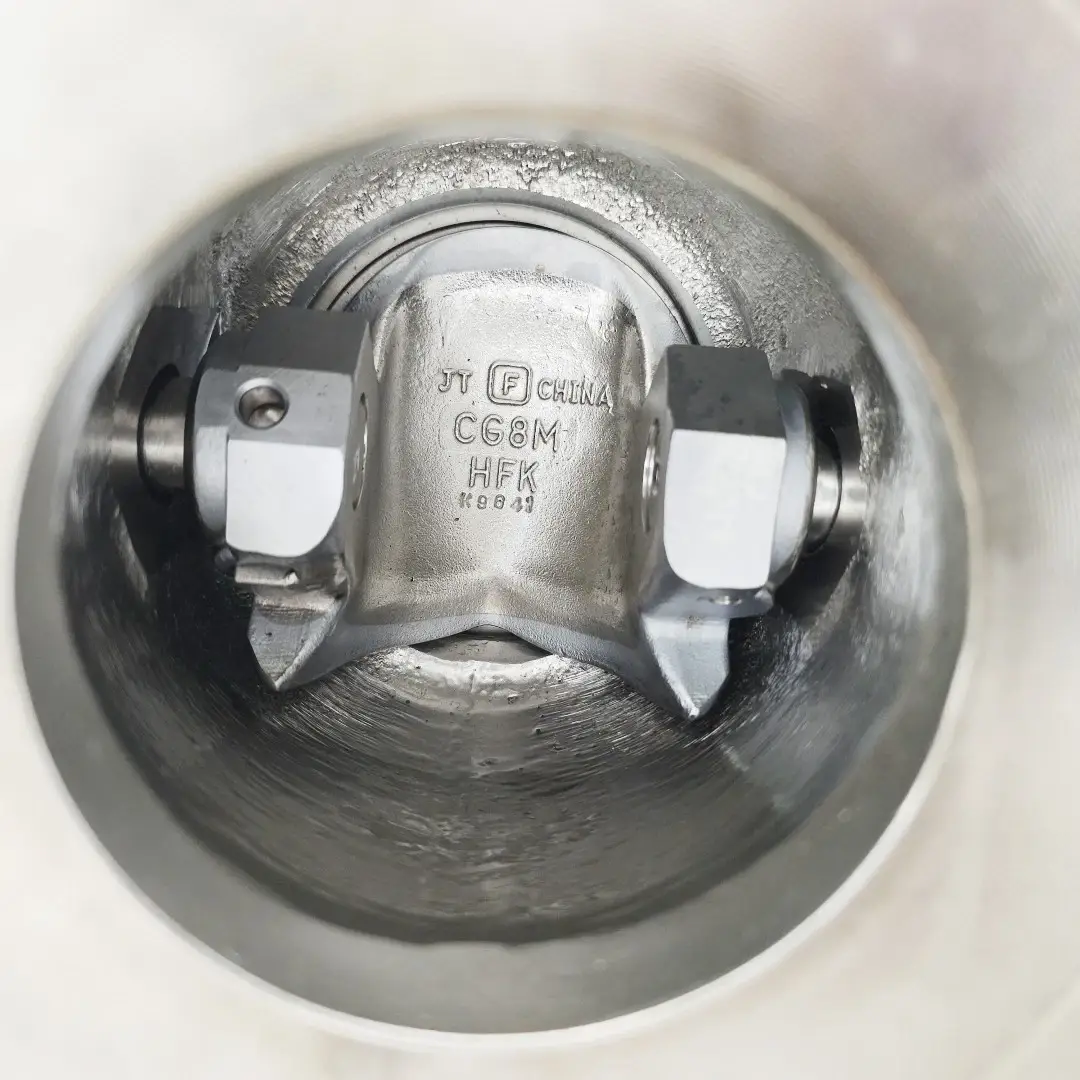

- Materials (per tag): SST body, SST shaft, SST seat / trim [VERIFY alloy]

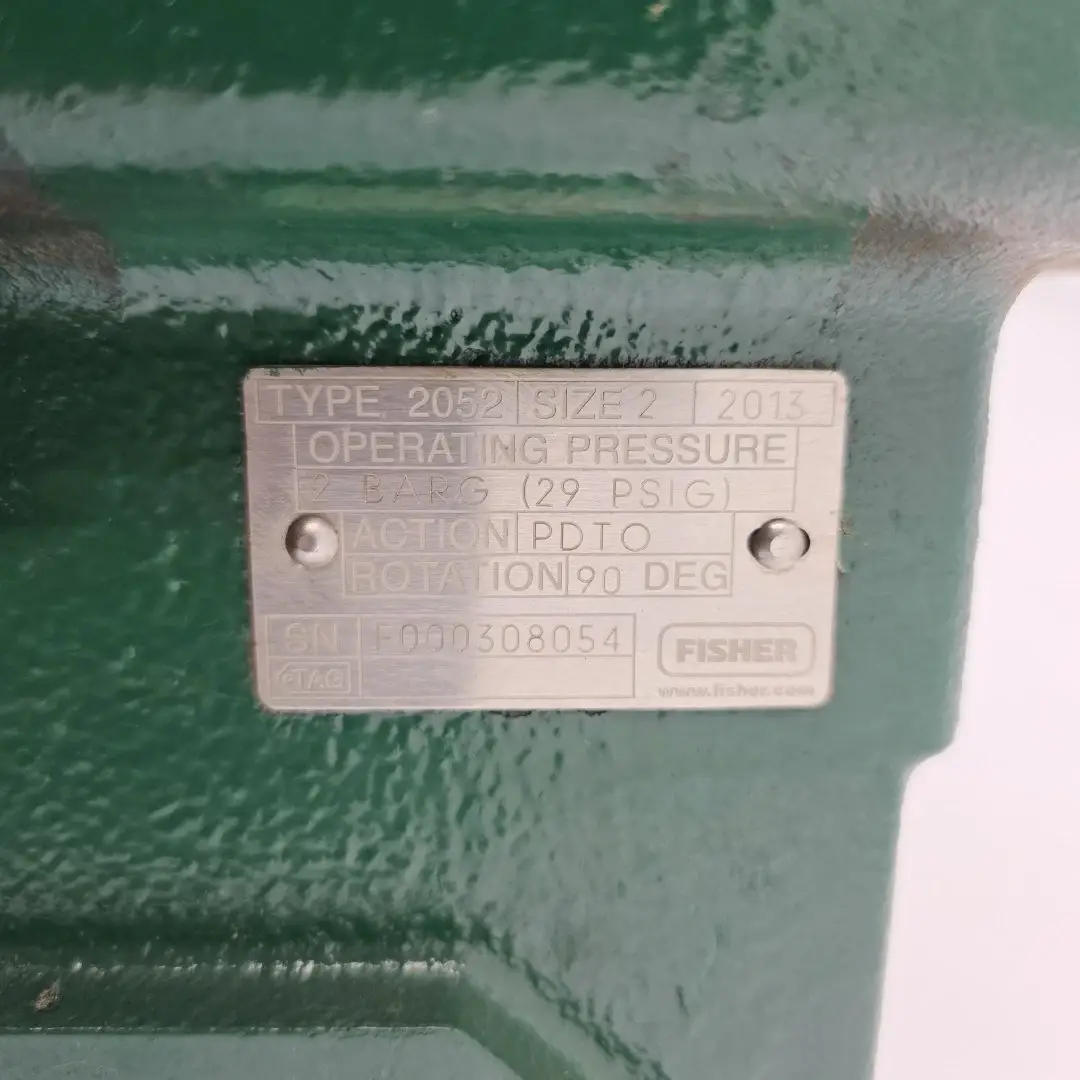

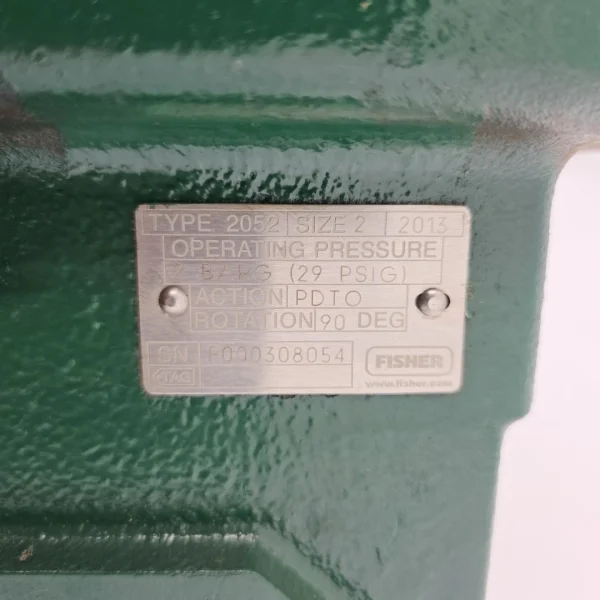

- Actuator: 2052, Size 2, pneumatic

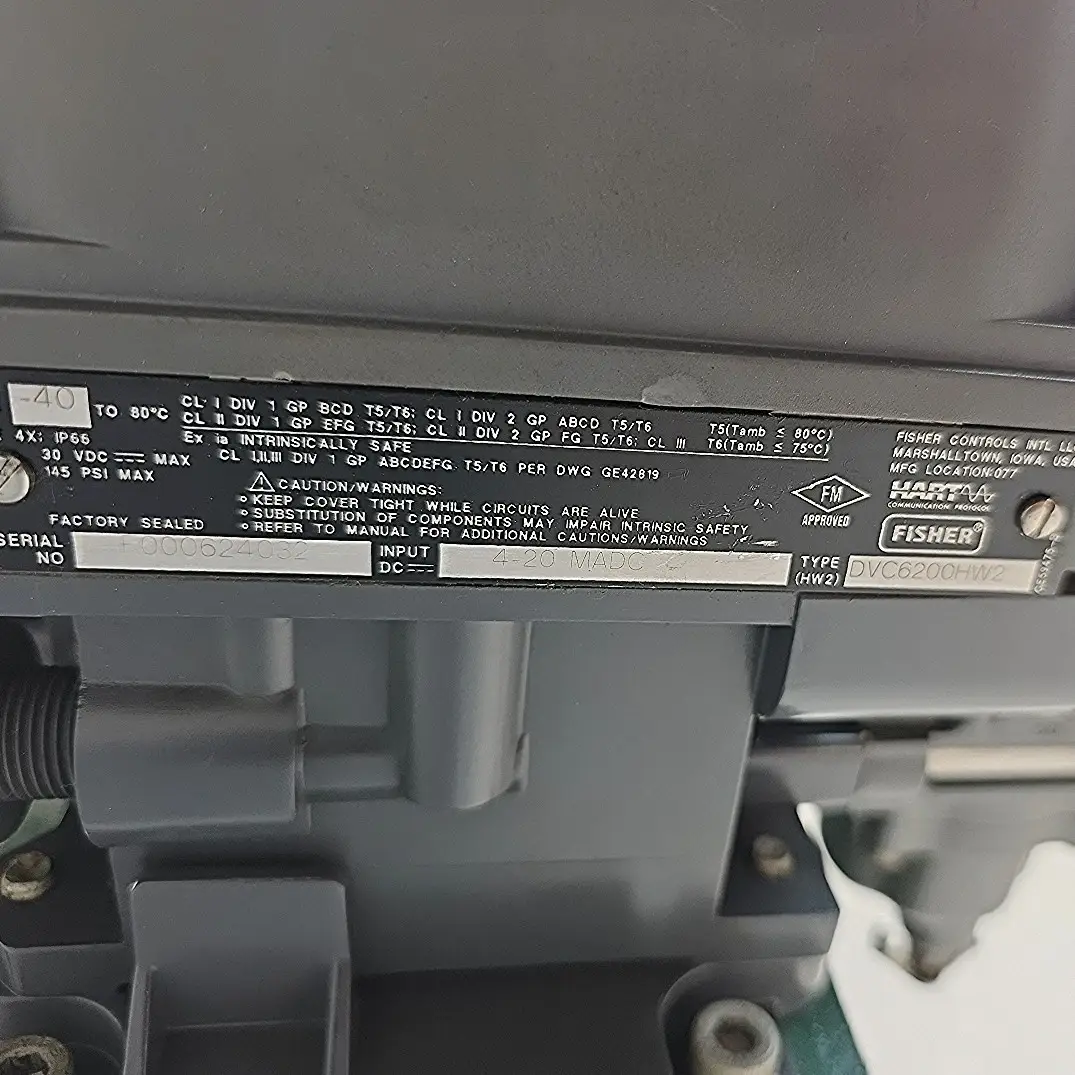

- Positioner: FIELDVUE DVC6200 (HW2), 4–20 mA input
- Serials: [VERIFY from tags]
- Included: Complete valve/actuator/positioner assembly as shown
Applications
- Chemical and petrochemical process control
- Power, pulp & paper, and general industrial service
- Water & wastewater throttling and on/off
Documentation (Click to View PDFs)
- 📑 Fisher Vee-Ball V150/V200/V300 Product Bulletin (PDF)
- 🛠️ Fisher V150 Vee-Ball Instruction Manual, NPS 1–12 (PDF)
Explore our full range of Valves.
Condition & Availability
Used; In good working condition. Clean internals; minor shelf/handling marks. Ships palletized via LTL; export crating available on request.
