Fisher 6″ V150 Vee-Ball Valve — CL150 w/ 2052 Size 2
$5,000.00 USD
Additional Specifications
Product ID: RD075
| Manufacturer | Fisher / Emerson |
| Valve Model | V150 SER B Vee-Ball® |
| Size & Rating | 6″, ANSI Class 150 (RF flanged) |

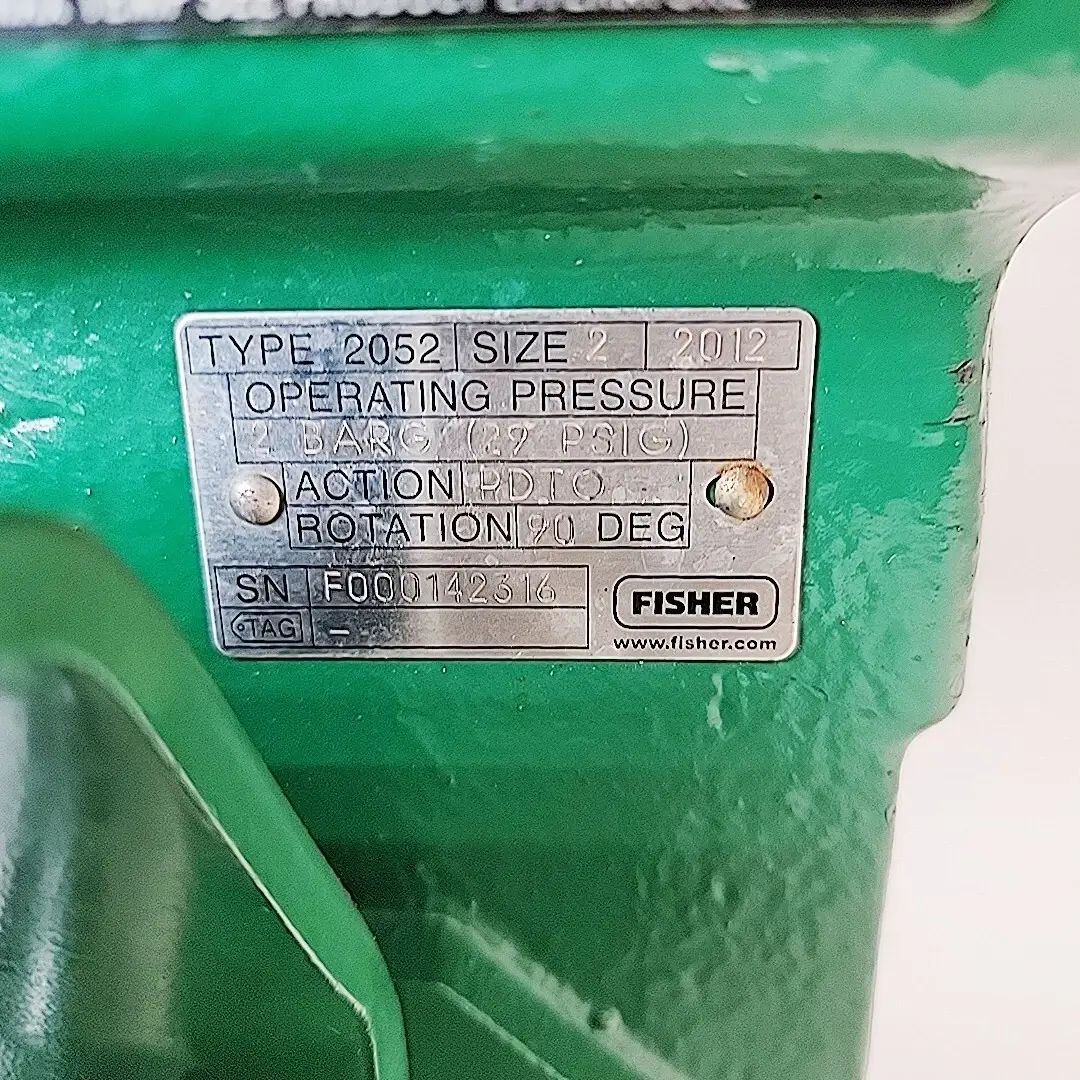

| Actuator | Fisher 2052 Pneumatic, Size 2 (plate year 2012) |

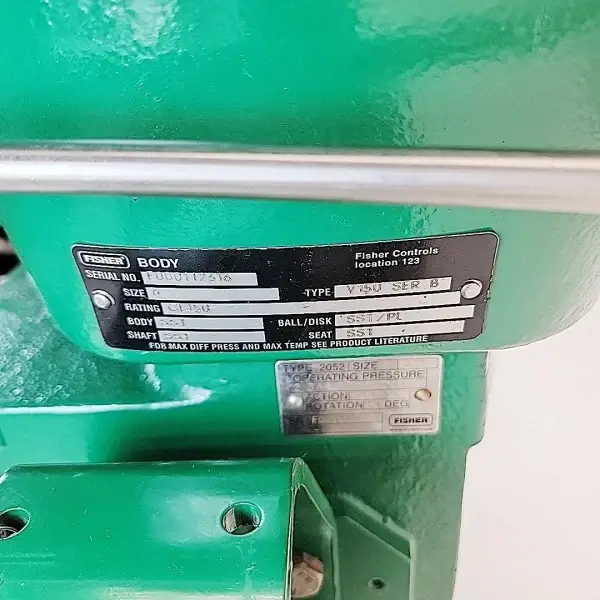

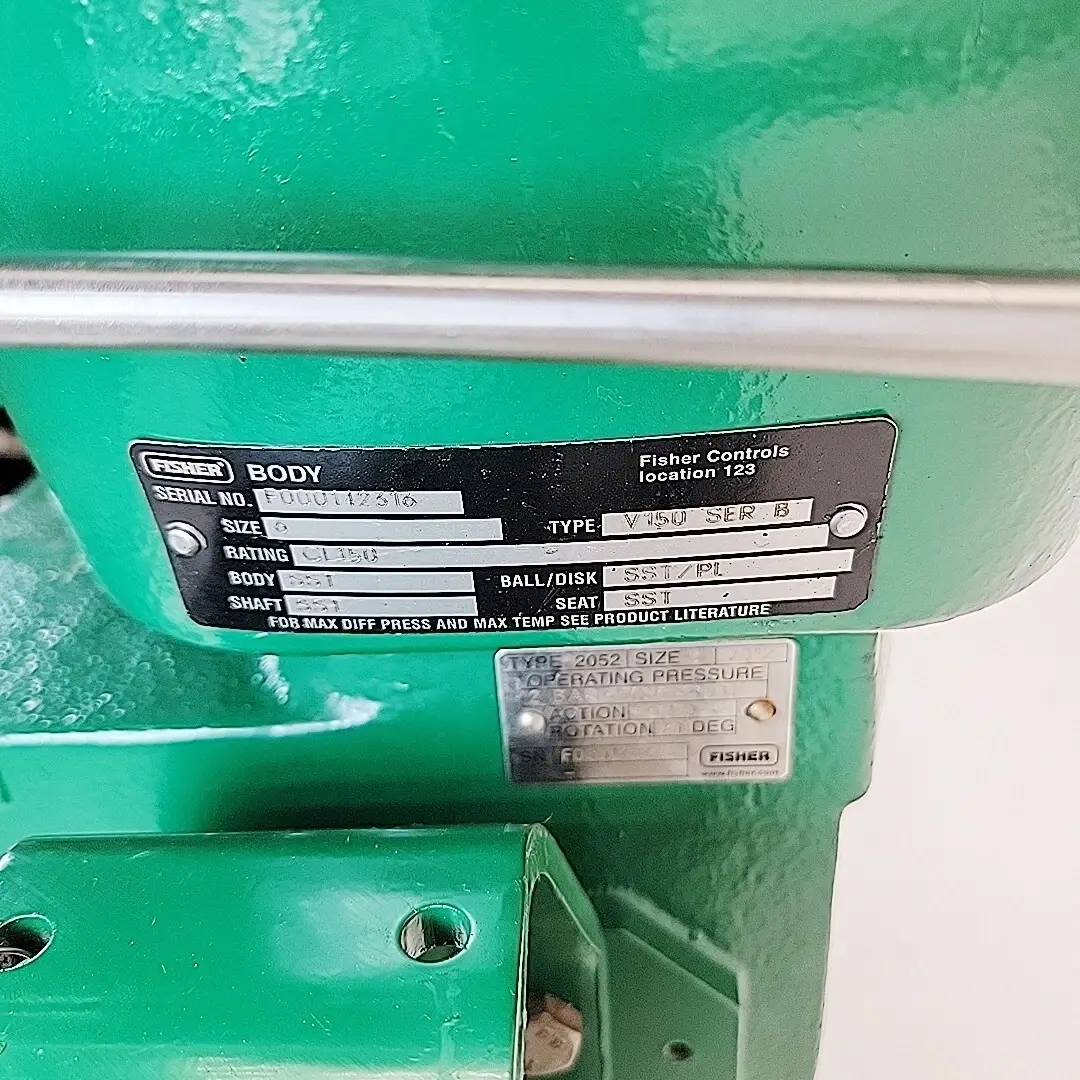

| Trim / Materials | Tag shows SST ball/disk, SST seat, SST shaft. |
| Serial Numbers | F000142316. |

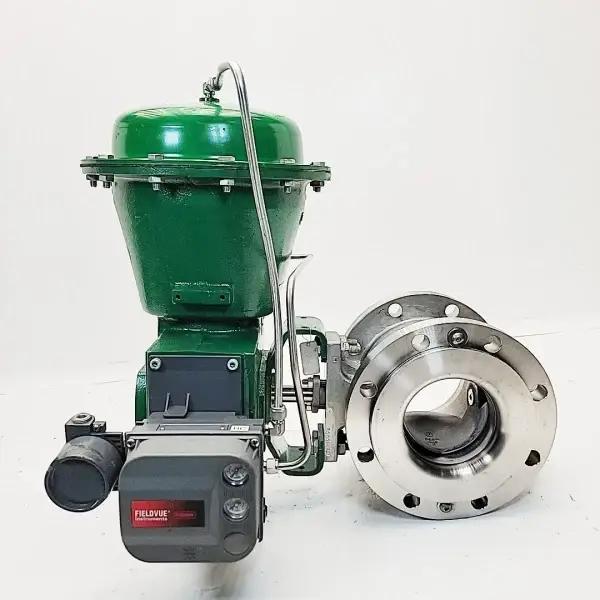

| Included | Complete valve/actuator assembly as pictured; positioner in photos; no other accessories unless shown. |
Condition: Used / very clean removed from production in good working condition; minor wear from production
Documentation (Click to View PDFs)
Fisher Vee-Ball V150/V200/V300 Product Bulletin (PDF)
Fisher V150 Vee-Ball Instruction Manual, NPS 1–12 (PDF)
Sales@dwpindustrial.com
Logistics@dwpindustrial.com
Admin@dwpindustrial.com
1 in stock
Description
Fisher 6″ V150 SER B Vee-Ball — CL150 with 2052 Size 2 Pneumatic Actuator
The Fisher 6″ V150 Vee-Ball valve delivers precise throttling and on/off service in process systems.
This assembly is fitted with a 2052 Size 2 pneumatic actuator. Tag shows ANSI Class 150 rating and SST trim (ball/disk, seat, shaft)
Key Specifications
- Manufacturer: Fisher / Emerson
- Valve: V150 SER B, 6″, CL150, RF flanged
- Actuator: Fisher 2052, Size 2 (plate year 2012)
- Trim: SST ball/disk, SST seat, SST shaft (per tag)
- Serials: F000142316
- Included: Complete valve/actuator assembly as shown
Applications
- Chemical and petrochemical process control
- Pulp & paper, power, and general industrial service
- Water & wastewater throttling duty
Documentation (Click to View PDFs)
- 📑 Fisher Vee-Ball V150/V200/V300 Product Bulletin (PDF)
- 🛠️ Fisher V150 Vee-Ball Instruction Manual, NPS 1–12 (PDF)
Explore our full range of Valves.
Condition & Availability
Used / clean storeroom spare condition. Minor shelf/handling marks. Ships palletized via LTL; export crating available on request.
Additional information
| Product Disclaimer: | Please note that we are not an authorized distributor. |
|---|
