Goulds 3196 MTi 1.5×3-10 — 316SS, 9″ Impeller
$5,000.00 USD
Additional Specifications
Product ID: RD113
| Manufacturer | ITT Goulds Pumps |
| Model / Type | 3196 MTi (i-FRAME®) |
| Size | 1.5 × 3 − 10 (ANSI B73.1) |
| Material | 316 Stainless Steel |
| Impeller Diameter | 9″ (open impeller) |
| Performance (noted) | ≈ 75 GPM @ 277 ft @ 3500/3600 RPM |

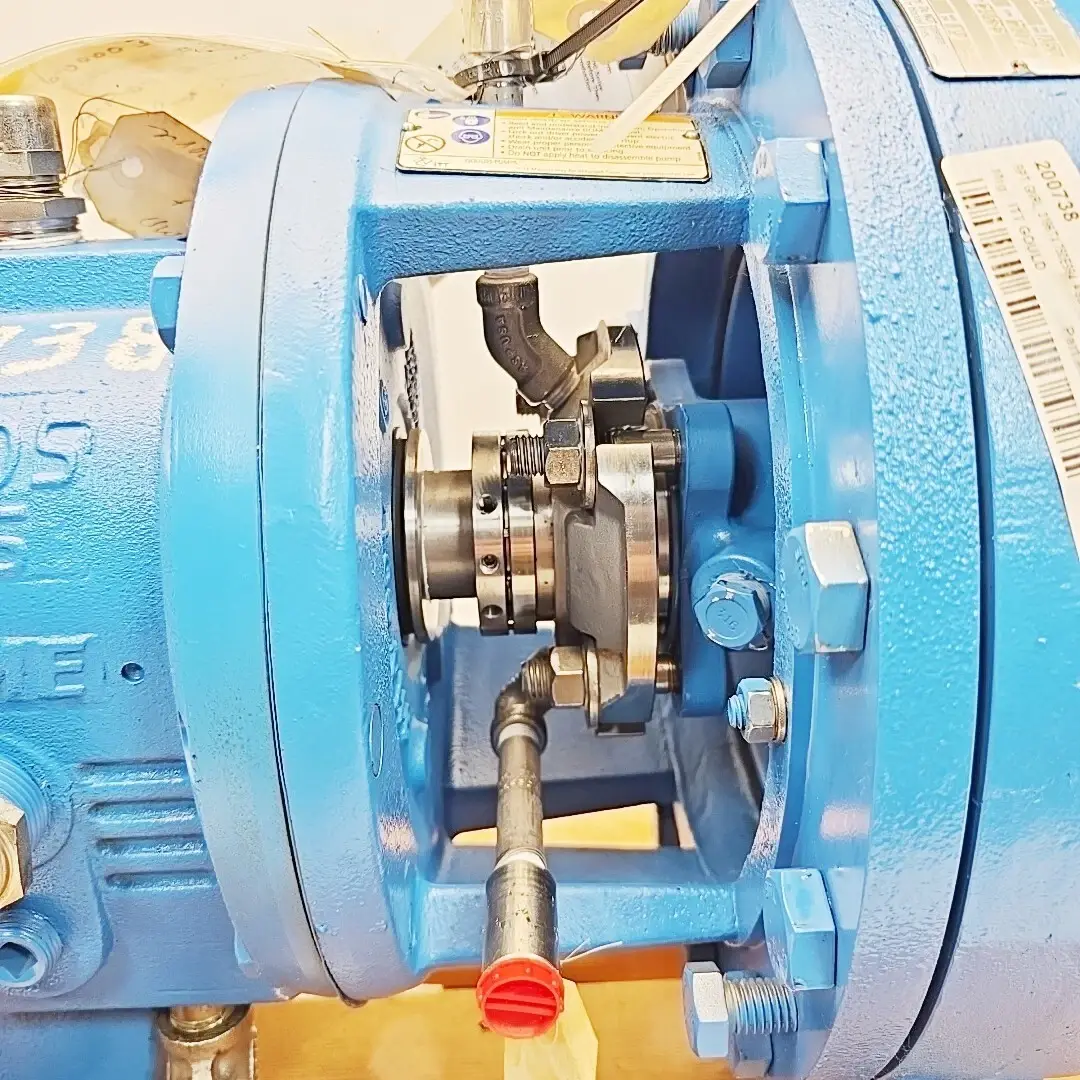

| Seal / Flush | Mechanical seal installed with flush/vent piping as pictured |
| Included | Pump assembly exactly as shown; no base/coupling/driver unless pictured |
Condition: Rebuilt / ready for service. Newer seal and hardware visible; clean finish; minor handling marks from storage/inspection.
Documentation (Click to View PDFs)
Goulds 3196 i-FRAME® ANSI Process Pump — Brochure (PDF)
Goulds 3196 i-FRAME® — Installation, Operation & Maintenance (PDF)
Sales@dwpindustrial.com
Logistics@dwpindustrial.com
Admin@dwpindustrial.com
1 in stock
Description

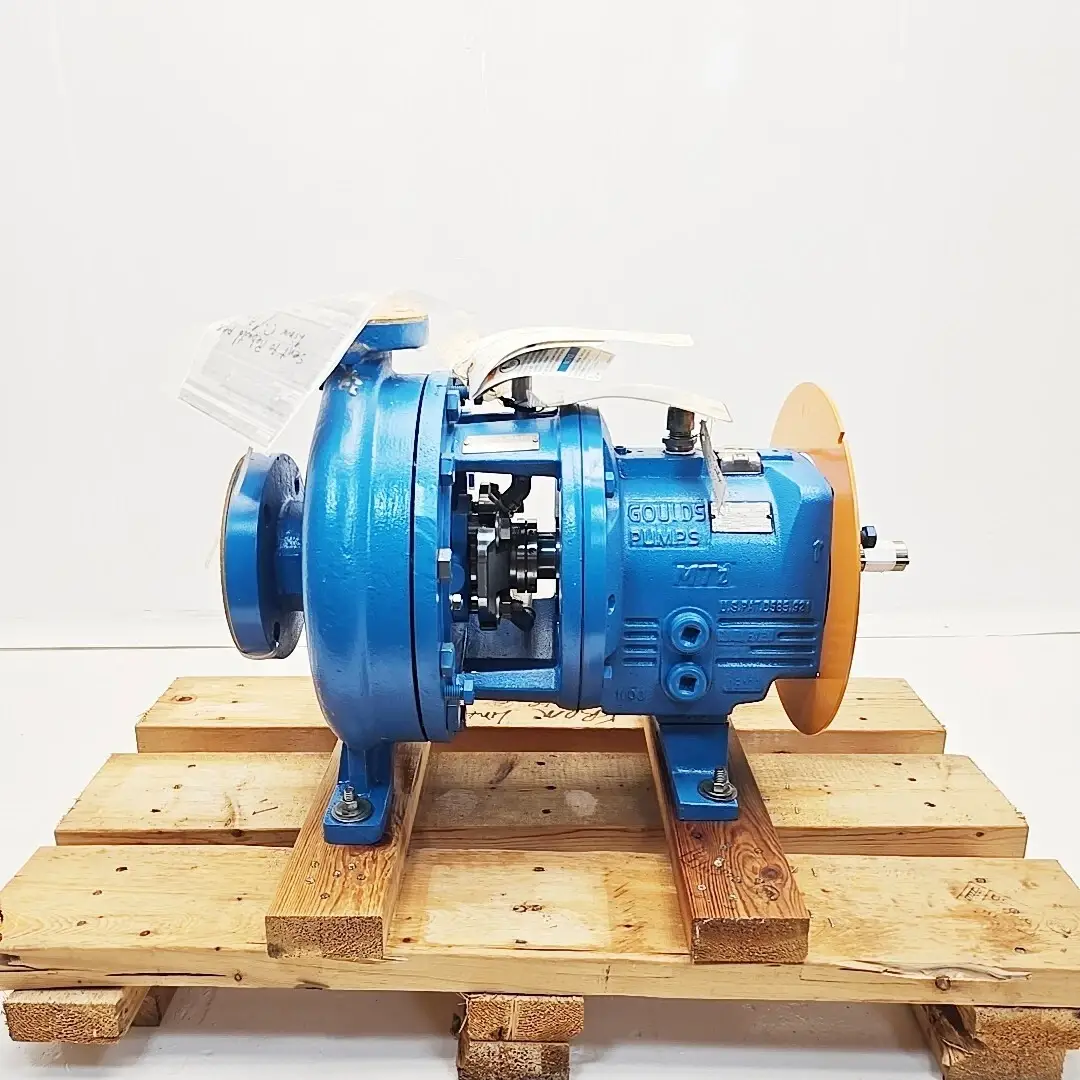

Goulds 3196 MTi — 1.5×3-10, 316SS, Rebuilt with 9″ Impeller
The Goulds 3196 MTi (i-FRAME®) is a workhorse ANSI B73.1 process pump for corrosive and industrial services.
This unit features a 316SS wetted end and a 9″ open impeller, rebuilt and ready for operation.

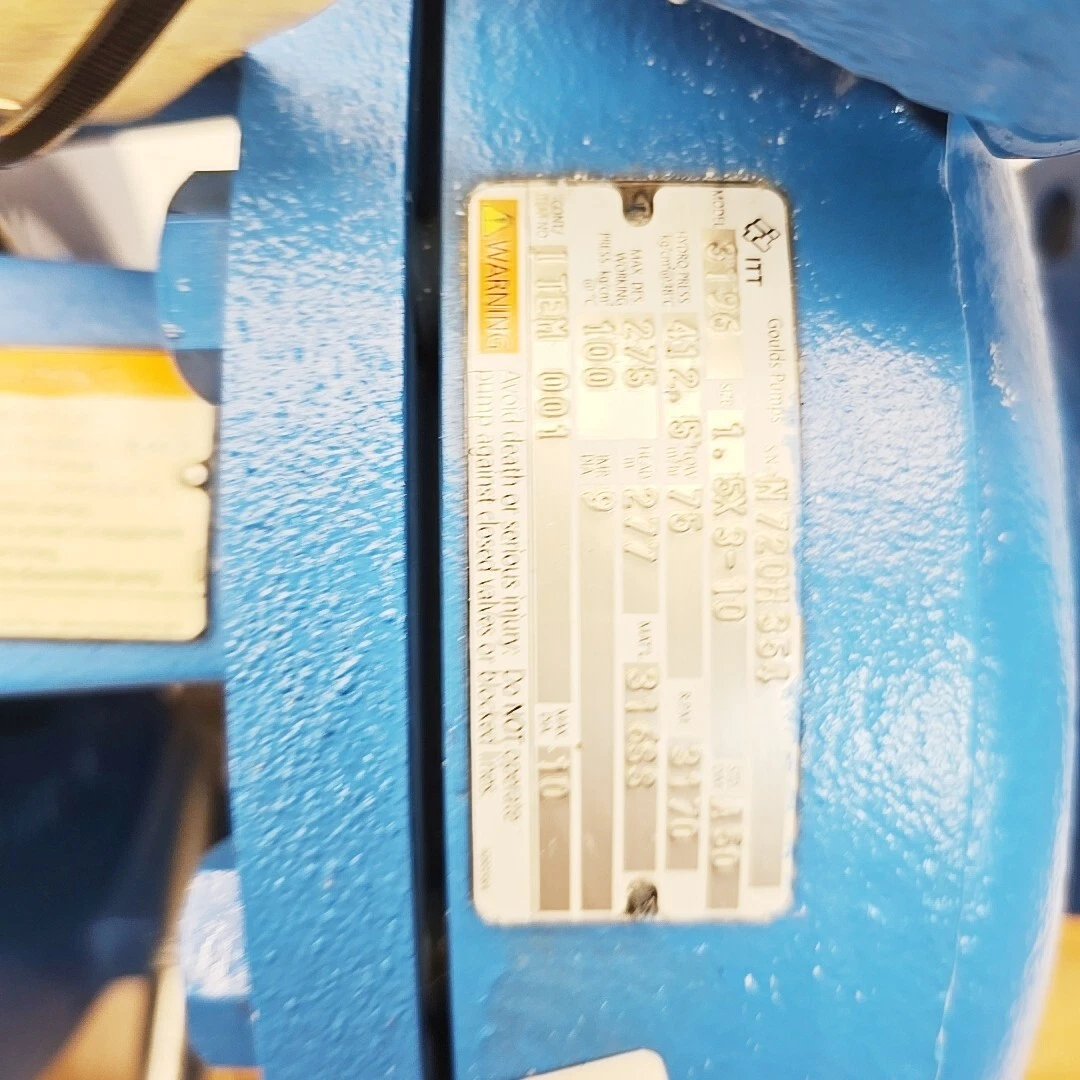

Nameplate note shows duty around 75 GPM @ 277 ft (verify your required duty point against curves).
Key Specifications
- Manufacturer: ITT Goulds Pumps
- Model/Type: 3196 MTi i-FRAME®
- Size: 1.5 × 3 − 10 | Material: 316SS (CF8M)
- Impeller: 9″ open impeller
- Seal: Mechanical seal installed (see photos)
- Included: Pump assembly as shown; no base/driver unless pictured
Documentation (Click to View PDFs)
Explore more Centrifugal Pumps.
Condition & Availability
Rebuilt / ready for service. Clean paint and hardware; minor handling marks. Ships palletized; export crating available upon request.
Additional information
| Product Disclaimer: | Please note that we are not an authorized distributor. |
|---|
