The Goulds 3196 MTX 3×4-13 centrifugal pump is an ANSI B73.1 process pump in 316 stainless steel with an 11.0″ impeller. This unit presents as a new/rebuilt storeroom spare with no reported process service. The 3196 MTX frame is a plant standard for reliability and easy maintenance. The nameplate indicates approximately 400 GPM at 136 ft at 1800 RPM, making it a strong fit for chemical, pharmaceutical, and water treatment duties where corrosion resistance and interchangeability matter.

Key Specifications

• Model: 3196 MTX
• Size: 3×4-13
• Material: 316 Stainless Steel (tag)

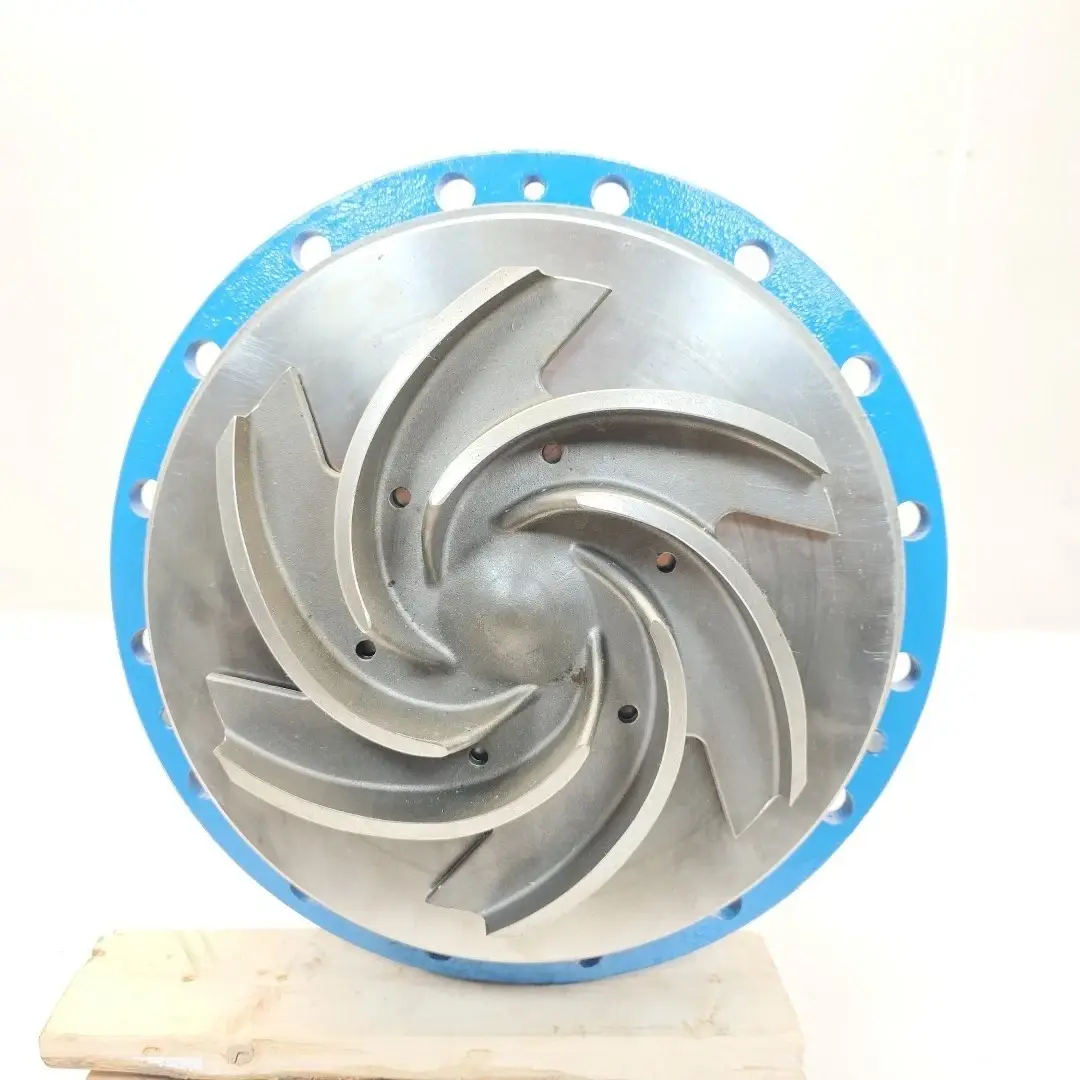

• Impeller Diameter: 11.0 in (tag)

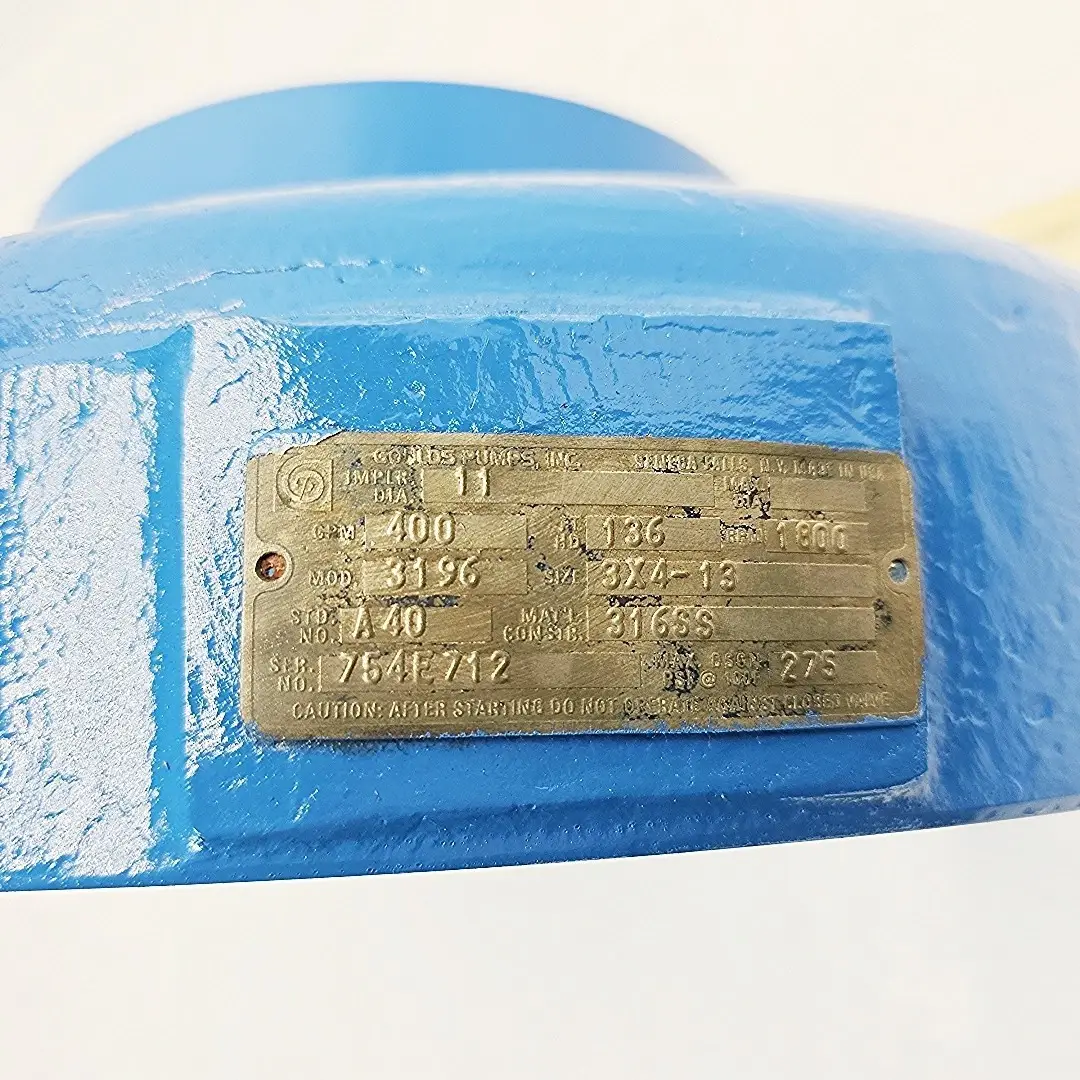

• Rated Point (tag): ~400 GPM @ 136 ft, 1800 RPM
• Serial No. (tag): 1754E712
• Condition: New/Rebuilt storeroom spare; smooth shaft rotation
• Seal/Bearing: Mechanical seal installed; MTX bearing frame (see photos)

Included

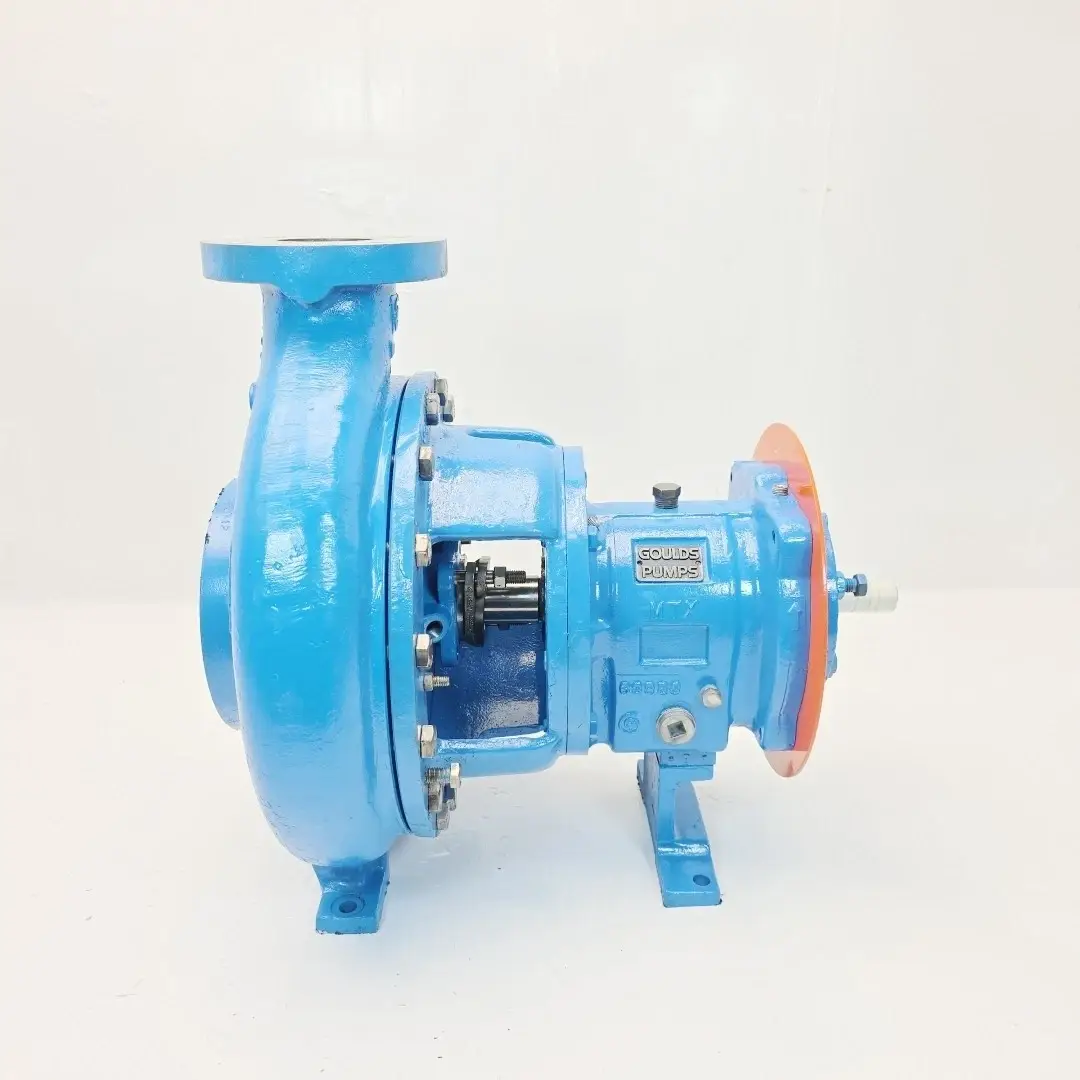

• Goulds 3196 MTX 3×4-13 pump assembly as photographed
• Installed mechanical seal and guard as shown
• No base, coupling, or motor unless pictured

Documentation (click to open)

Goulds 3196 — Installation/Operation/Maintenance (PDF)
Goulds 3196 — Brochure / Curves (PDF)

Browse more pumps in our Pumps category.
OEM site: ITT Goulds Pumps.

Shipping & Terms

• • Palletized and protected for LTL; export crating available.
  • Freight quotes on request—send ZIP and dock/liftgate details.
  • 30-day warranty against DOA; buyer verifies duty point and metallurgy with OEM data.
