The Nash CL-1002 liquid ring vacuum pump is a classic CL series workhorse for paper, chemical,
power and general process vacuum. The nameplate shows CL-1002 with ECM Inc. test data:
Test No. 15B11490, Job No. 11499, dated 08/22/2013 (see photos).
Single-stage liquid ring design handles wet air/vapor mixtures and carryover reliably with low maintenance.

Key Specifications

• Manufacturer: Gardner Denver NASH
• Series / Model: CL Series — CL-1002
• Type: Single-stage liquid ring vacuum pump
• Condition: Rebuilt storeroom spare; ECM test tag dated 08/22/2013
• Connections / Orientation: Flanged suction/discharge as shown
• Typical CL performance: See brochure curves for size-specific capacity and vacuum limits

Included

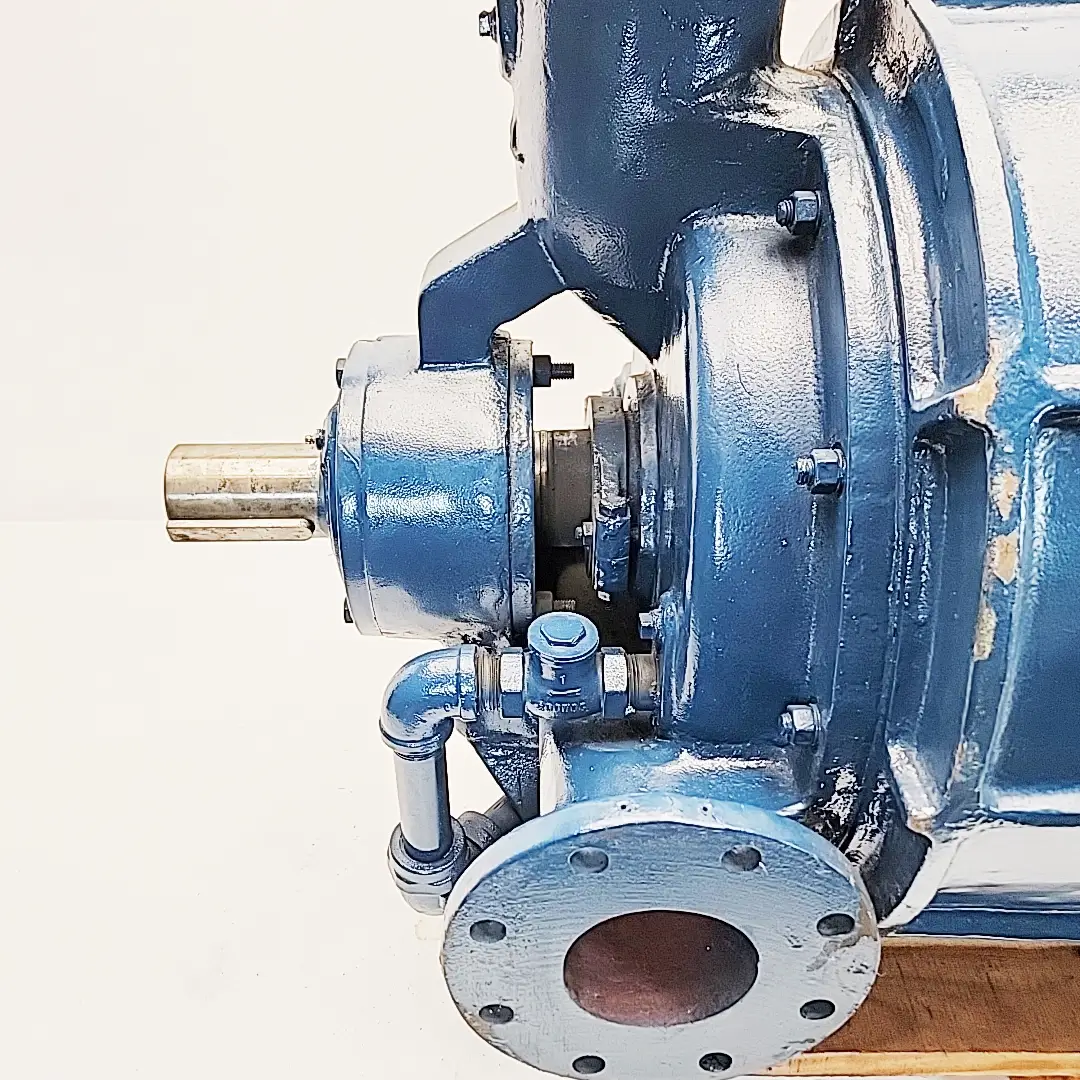

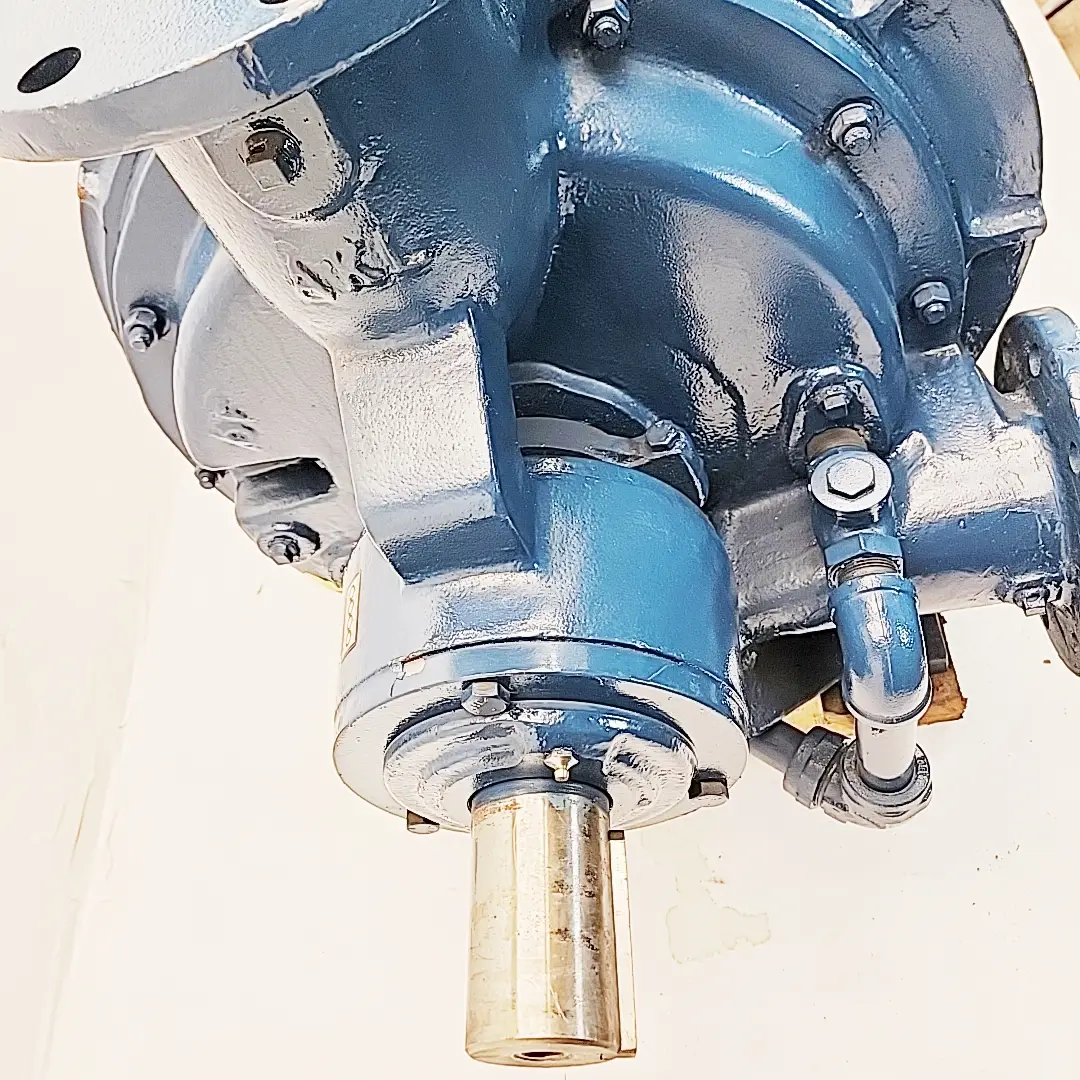

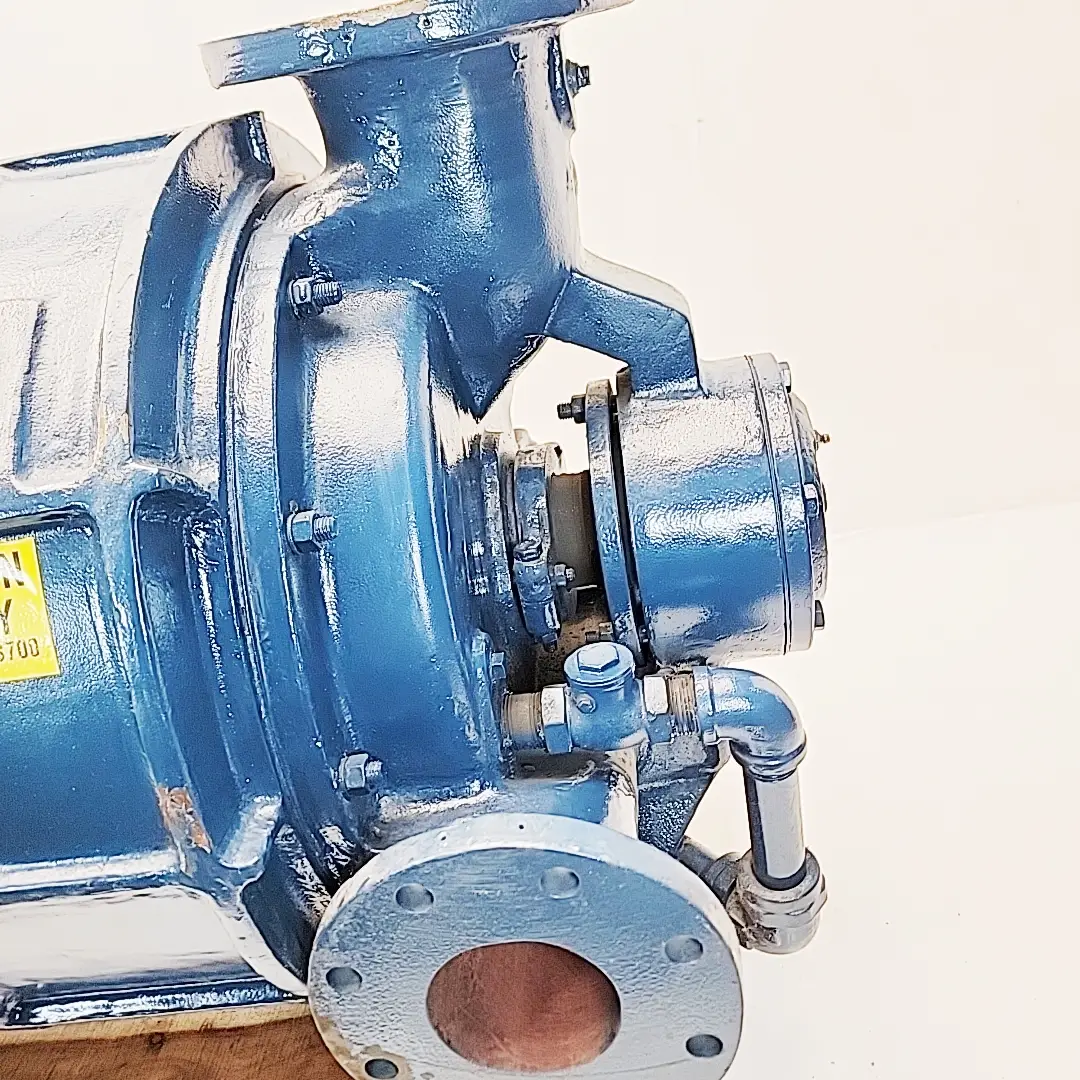

• Nash CL-1002 pump assembly as photographed
• Installed oilers/piping as shown
• No base, coupling, or motor unless pictured

Documentation (click to open)

NASH — CL Series Product Page
NASH CL Series — Brochure (PDF)
NASH CL Series — Brochure (Mirror PDF)
