Description

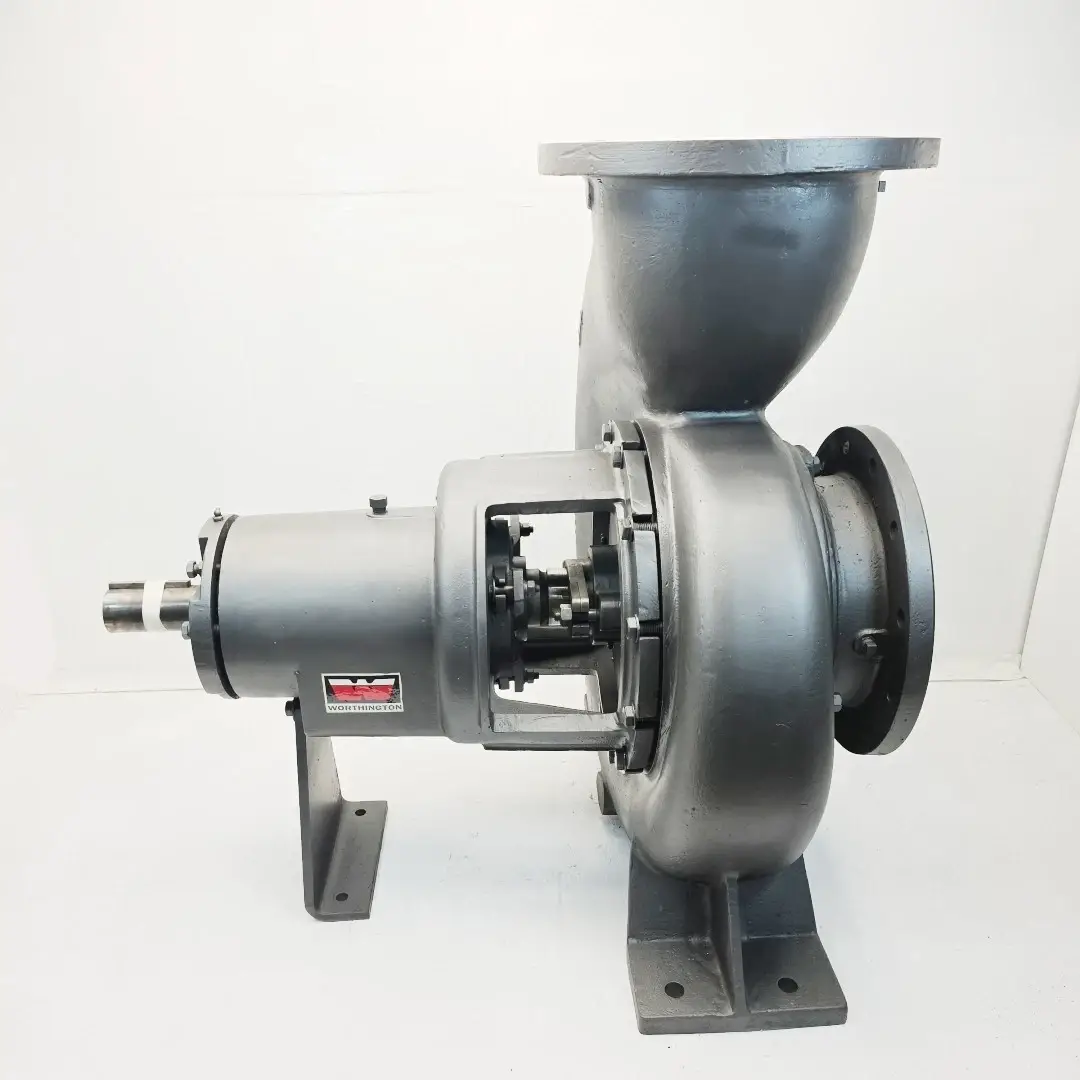

Worthington 14 FRBH-183 Centrifugal Pump — CD4M Duplex Stainless, 1180 RPM

The Worthington (Flowserve) FRBH is a single‑stage, end‑suction centrifugal pump engineered for paper stock and industrial process service. This unit is the 14 FRBH‑183 size with CD4M (duplex stainless) construction for enhanced corrosion resistance. Nameplate shows RPM 1180 and Rated Head 40 ft. Ideal for pulp & paper, chemical, water treatment, and general process transfer.

Key Specifications

• Manufacturer: Worthington / Ingersoll‑Dresser Pumps (Flowserve)
• Model: 14 FRBH‑183
• Type: End Suction Centrifugal Process Pump

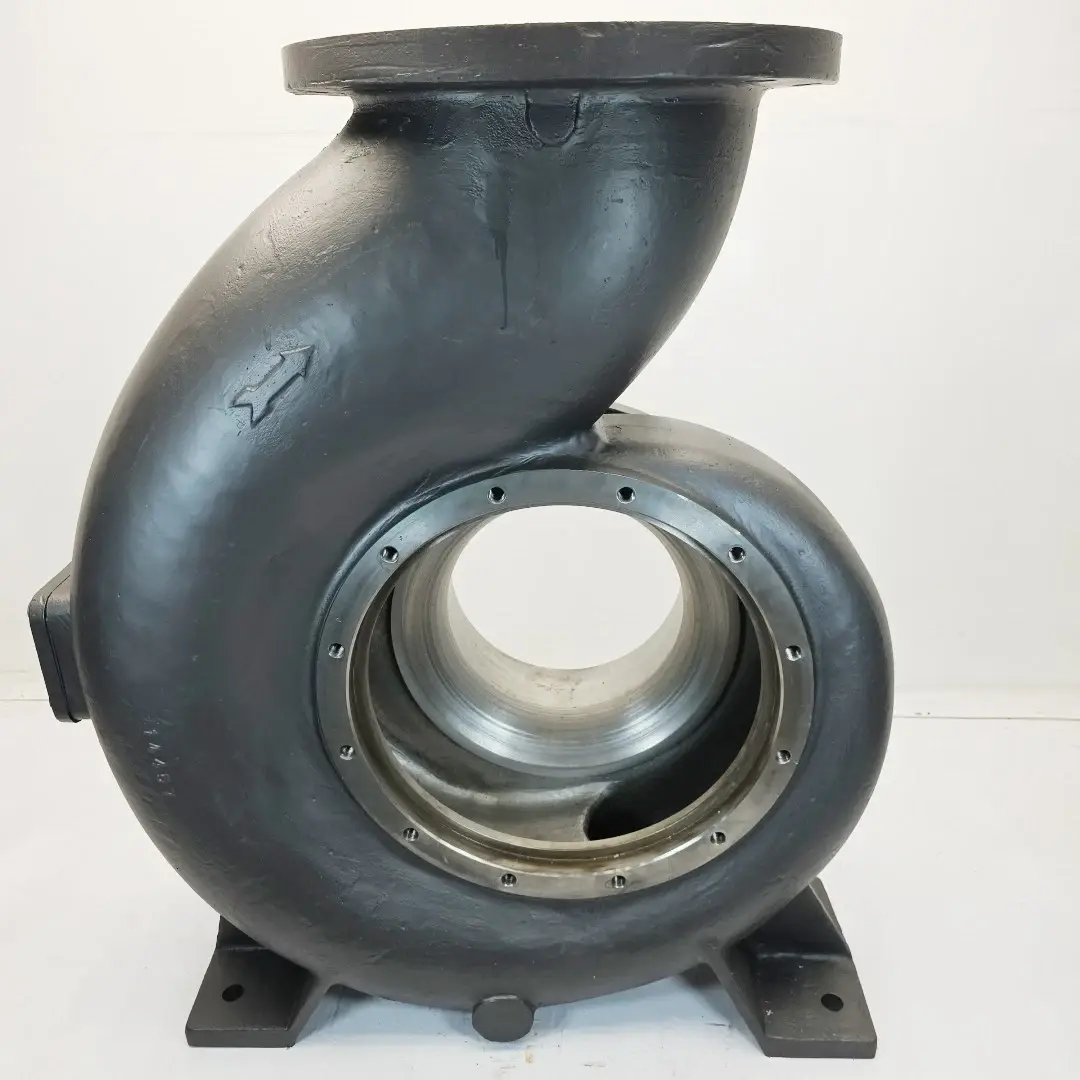

• Casing Material: CD4M (duplex stainless) [aka CD4MCuN]

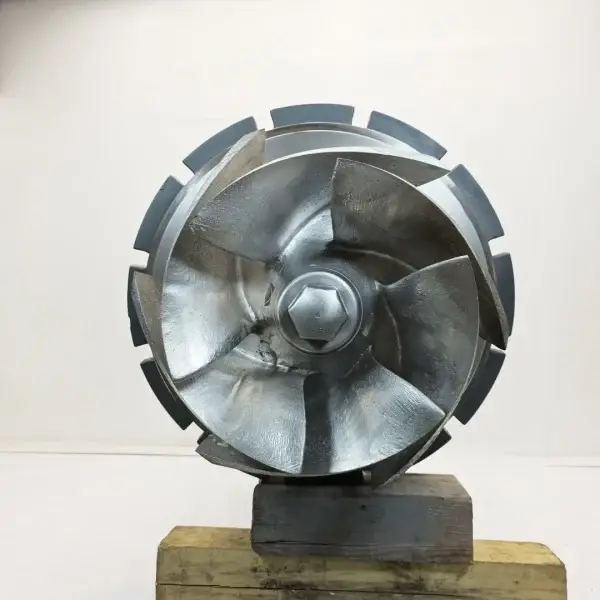

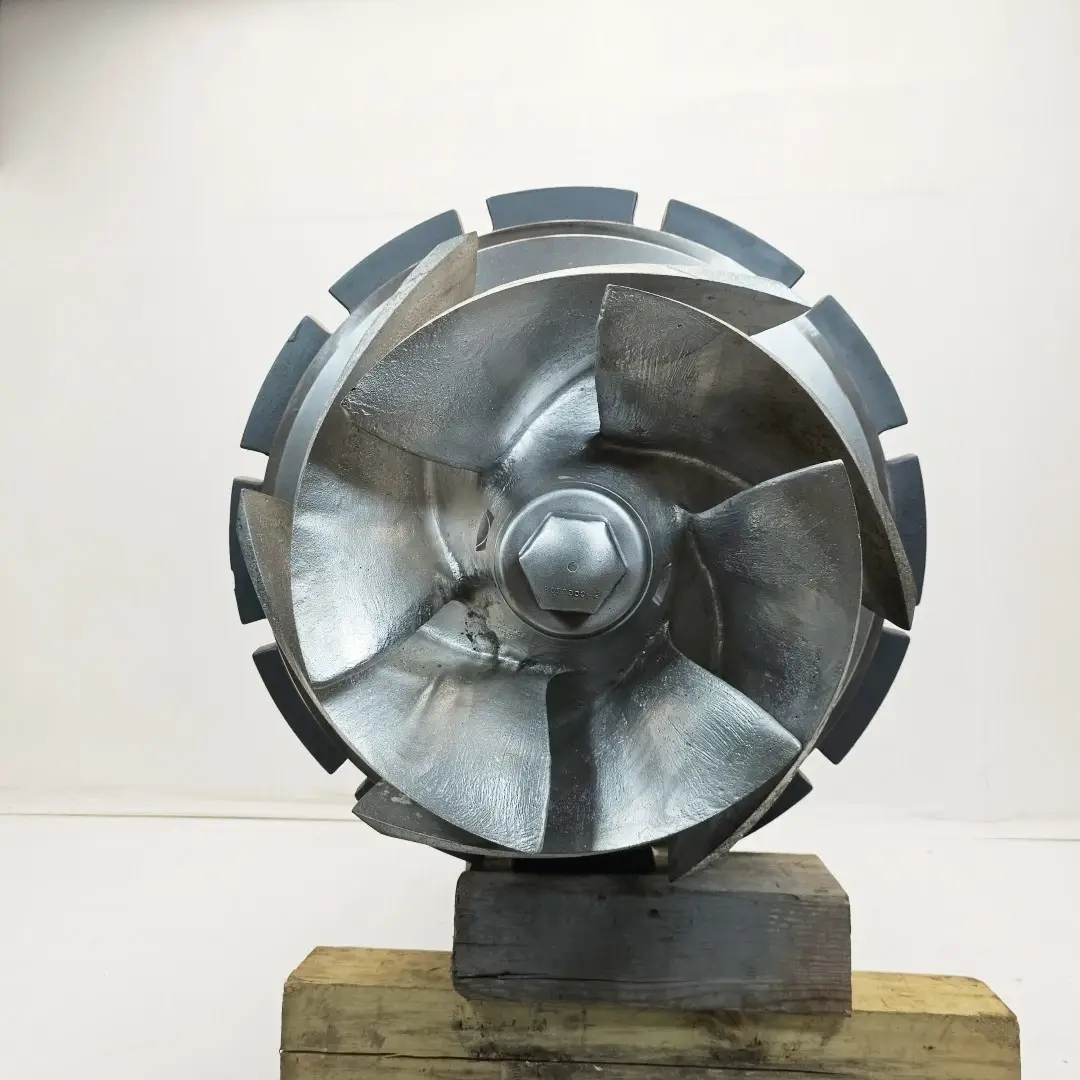

• Impeller: Semi‑open (FRBH series)

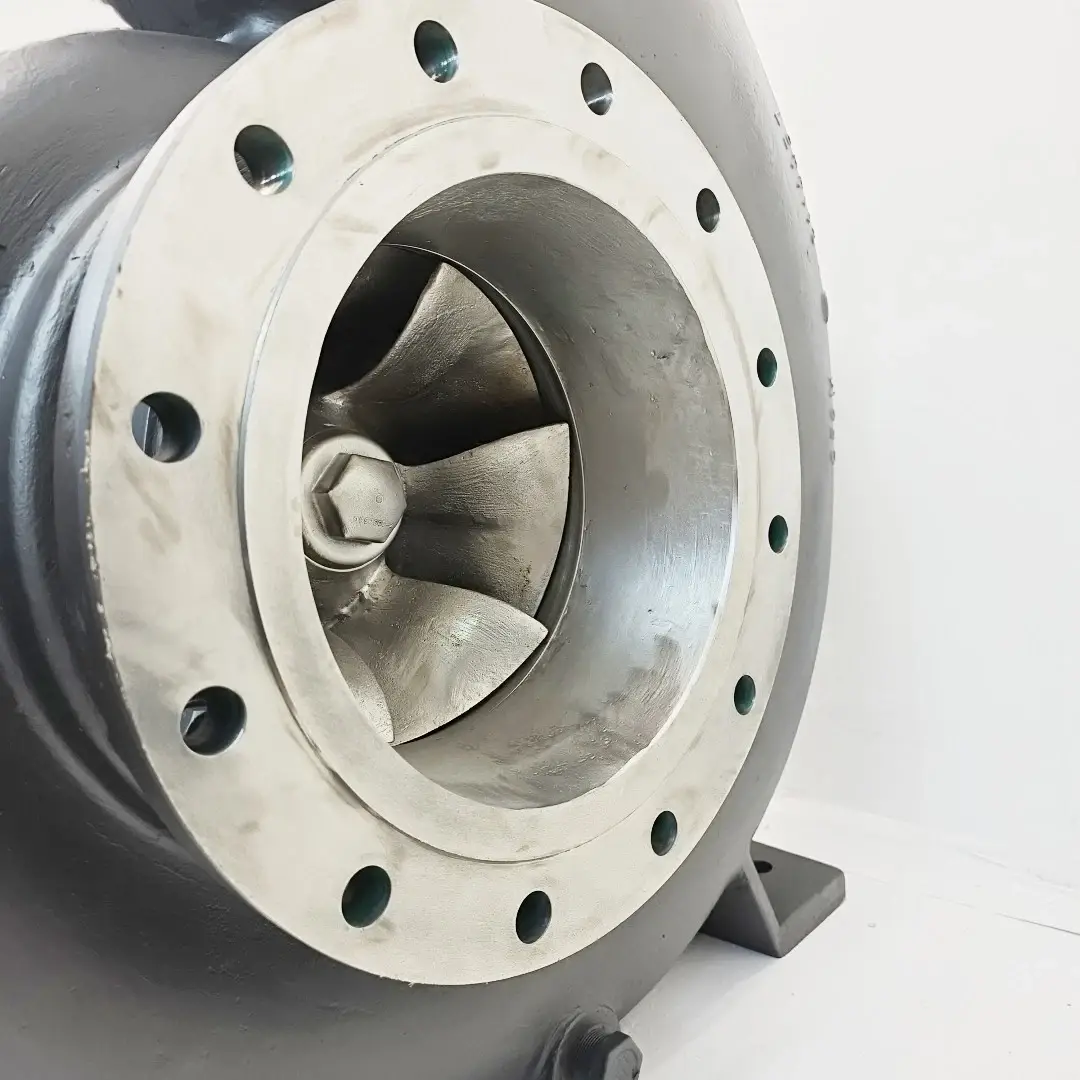

• Suction / Discharge: 14″ suction (series size); discharge per FRBH‑183 trim
• Nameplate RPM: 1180
• Rated Head (NP): 40 ft (nameplate field)

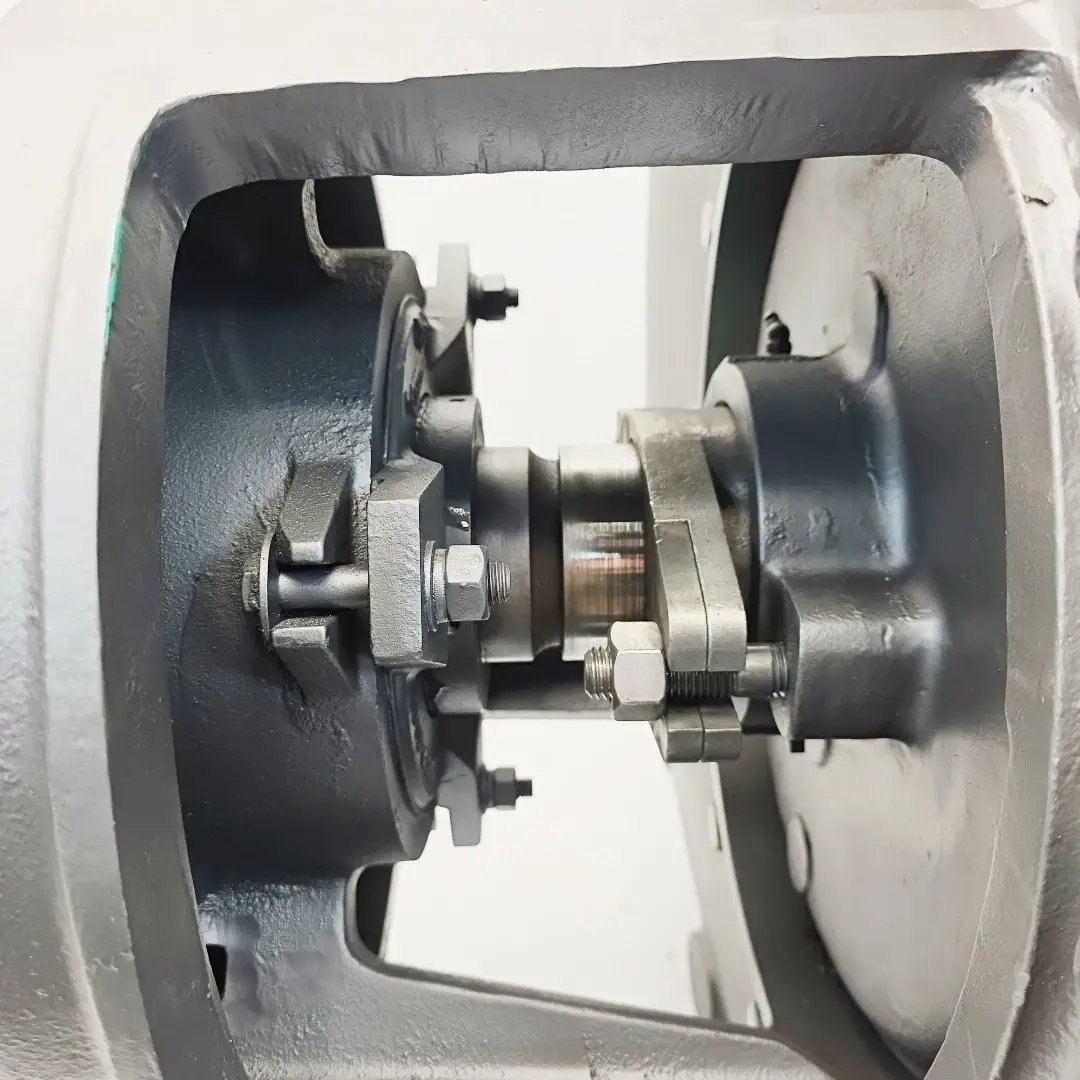

• Seal Chamber: Standard FRBH stuffing box / mechanical seal ready
• Orientation / Mount: Horizontal end suction, pedestal foot mount

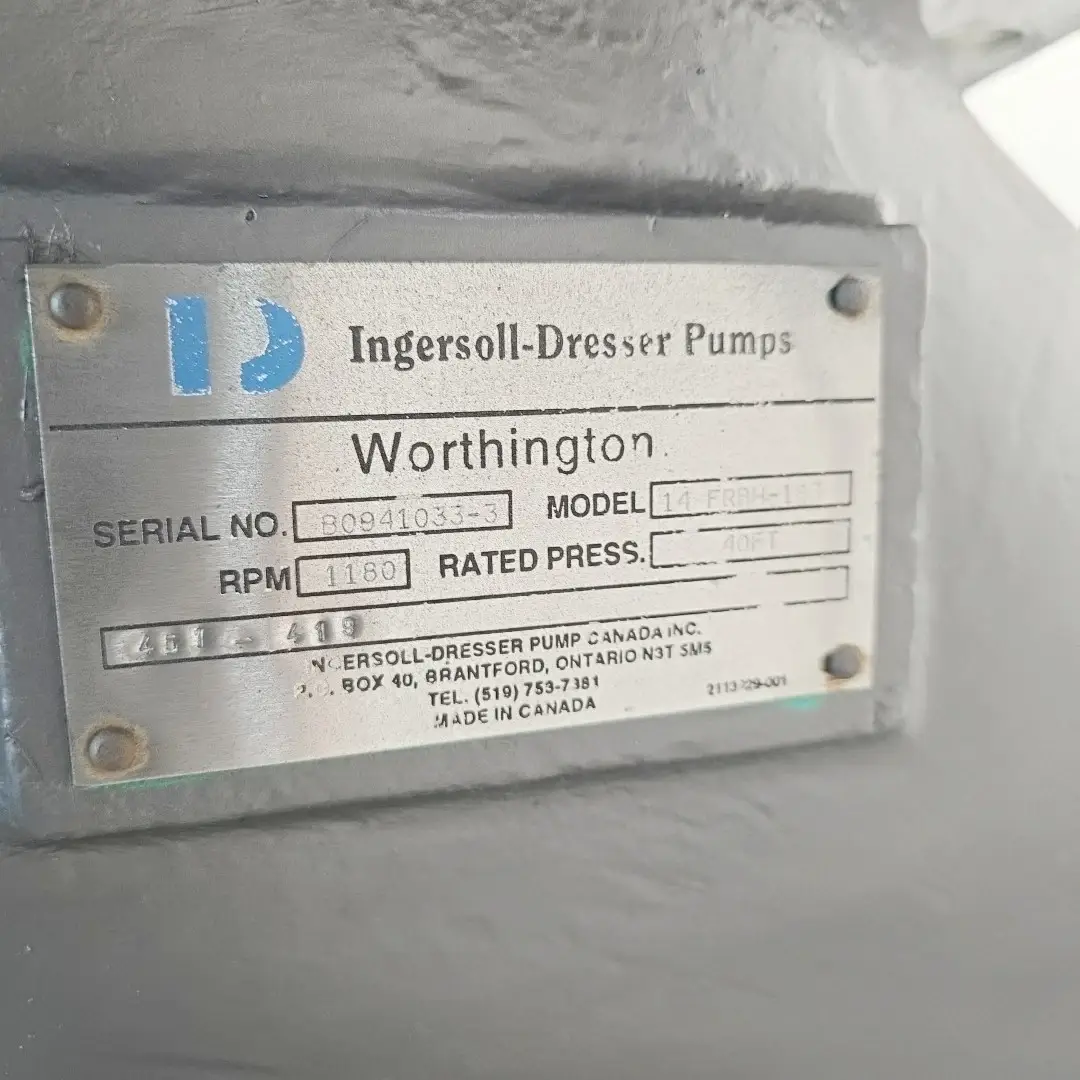

• Serial No.: B0941033‑3
• Country of Manufacture: Canada (Ingersoll‑Dresser Pumps Canada Inc., Brantford, ON)

Included & Condition

• Included: Pump only as shown (bare pump/end suction casing, impeller/shafting, bearing housing & pedestal). Couplings, base, and driver not included unless shown.
• Condition: Used — removed from service; good overall condition with OEM nameplate intact. Minor cosmetic wear from prior industrial use and storage.

Applications

• Paper stock and recycled fiber service
• Chemical and general industrial liquid transfer
• Water treatment systems
• Pulp & paper mills and process plant services

Condition: Used, removed from service; minor cosmetic wear.

Documentation (Click to View)

FRBH Brochure (PDF)
FRBH Rating Curves (PDF)
FRBH Installation & Operation Manual (PDF)
