Worthington 3CNG104 Pump 4×3 | 11.25″ Impeller | New/Rebuilt
$4,500.00 USD
Additional Specifications
Product ID: RD135
| Manufacturer | Flowserve — Worthington |
| Model | 3CNG104 (end-suction, frame-mounted) |
| port Size | 4″ suction × 3″ discharge (flanged) |
| Impeller Trim | 11.25″ |
| Bearing Frame | CNG power end with oil sight glass |
| Seal Chamber | mechanical seal |
| Included | Bare shaft pump as shown; no driver/coupling/base unless noted |
Condition: New / rebuilt spare.
Documentation (Click to View)
Sales@dwpindustrial.com
Logistics@dwpindustrial.com
Admin@dwpindustrial.com
1 in stock
Description

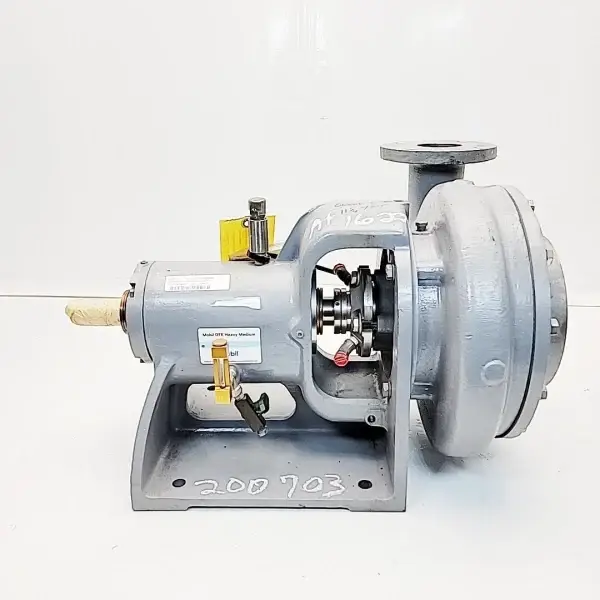

Worthington 3CNG104 End-Suction Centrifugal Pump — 4×3, 11.25″ Impeller (New/Rebuilt)

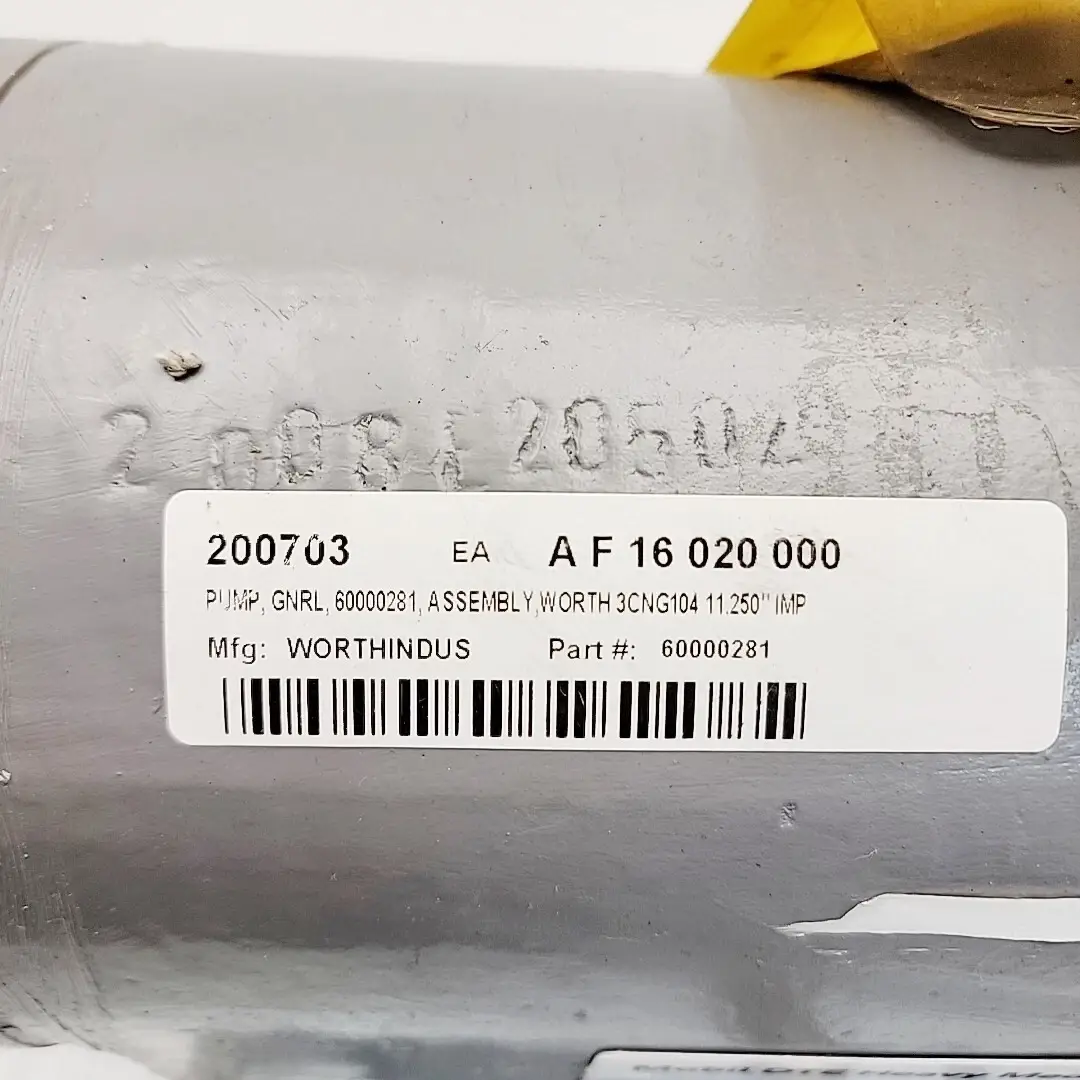

Worthington/Flowserve 3CNG104 frame-mounted end-suction pump. Tag notes an
11.25″ impeller trim and 4×3 nozzle configuration. The unit is a
new / rebuilt spare with preservation caps and lube tags, ready to commission per OEM instructions.
Worthington 3CNG Pump – Key Specifications
- Model: 3CNG104 (end-suction, frame-mounted)
- Nozzles: 4″ suction × 3″ discharge (flanged)
- Impeller: 11.25″ trim (per tag)

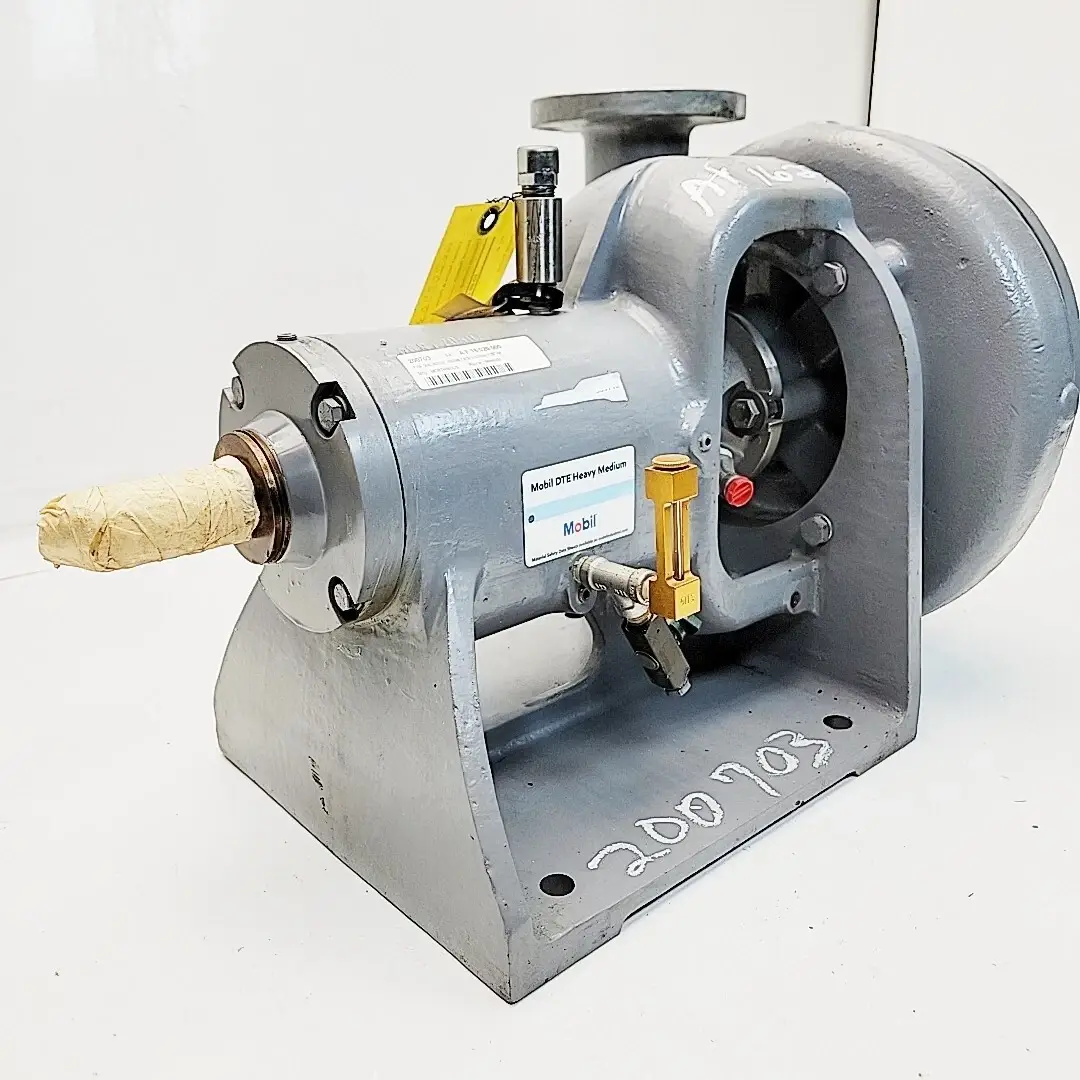

- Bearing Frame: CNG series power end with oil sight glass

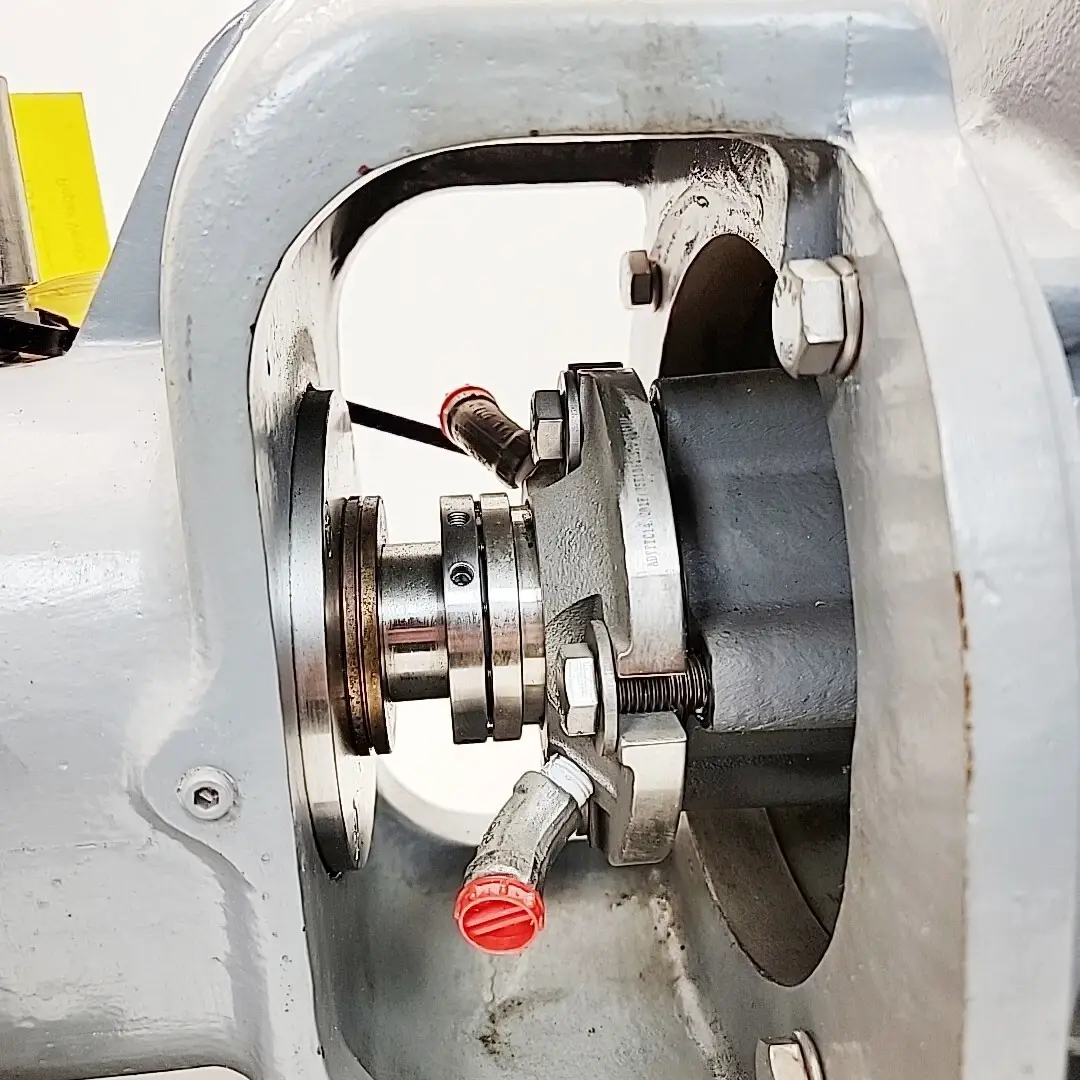

- Seal Chamber: Mechanical seal housing
Applications
- Water & utility services, general chemical transfer
- Cooling water, washdown, tank transfer, industrial circulation
Documentation (Click to View)
Included & Condition
Included: pump assembly as photographed (bare shaft pump only; no motor, coupling, or base unless listed).
Condition: New / rebuilt spare. Preserved; turns freely. Commission per OEM IOM.
Additional information
| Product Disclaimer: | Please note that we are not an authorized distributor. |
|---|
